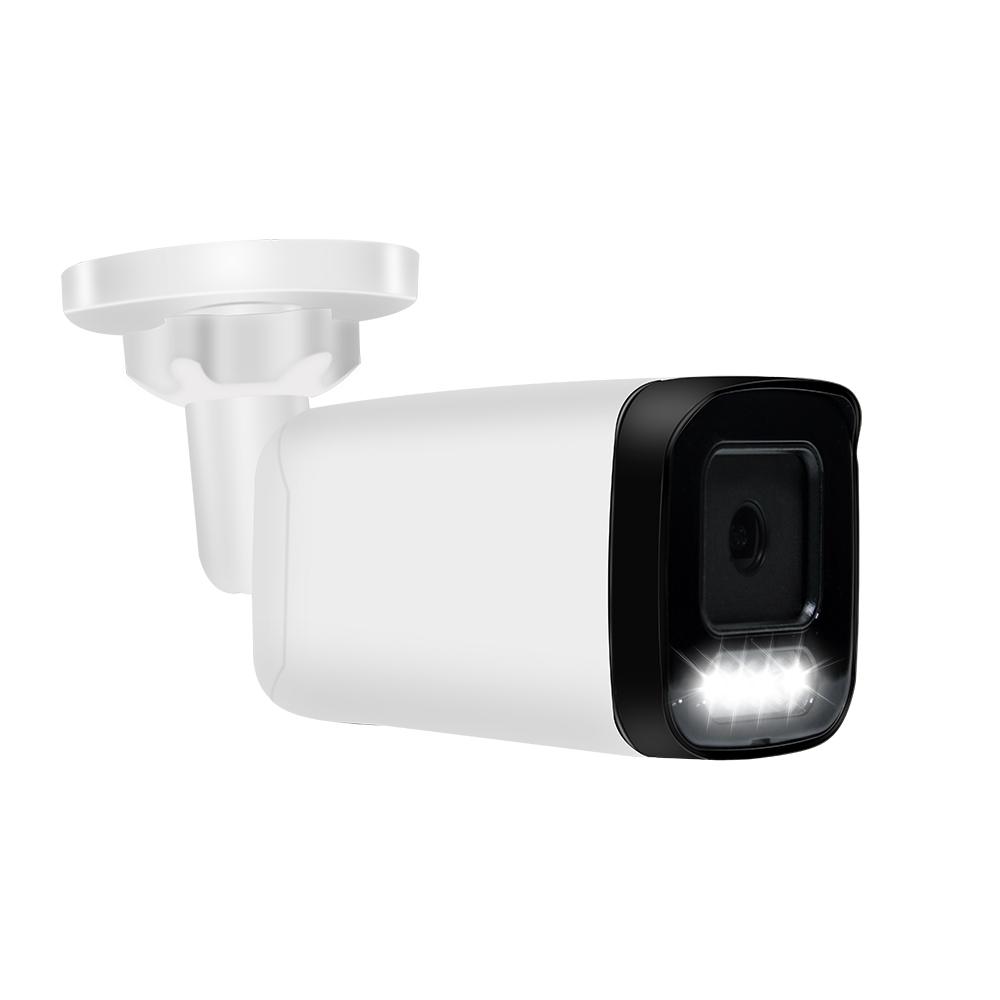

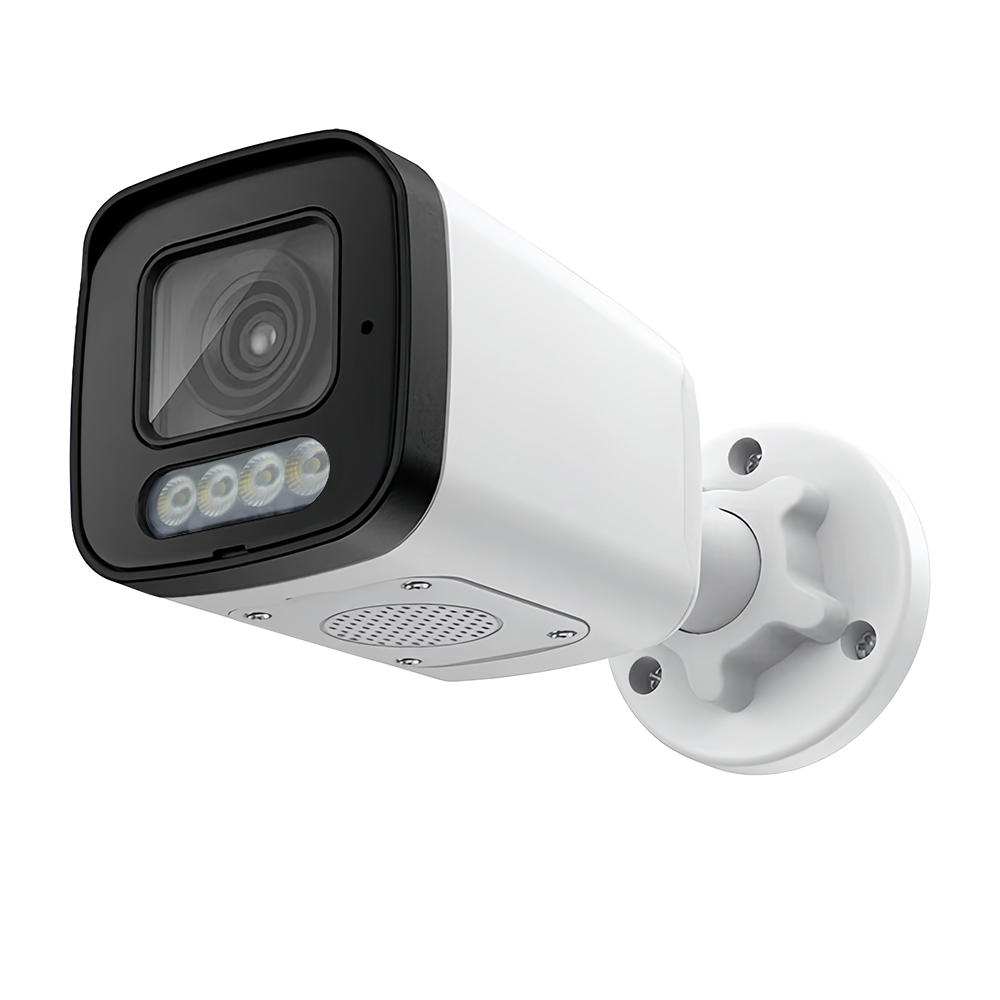

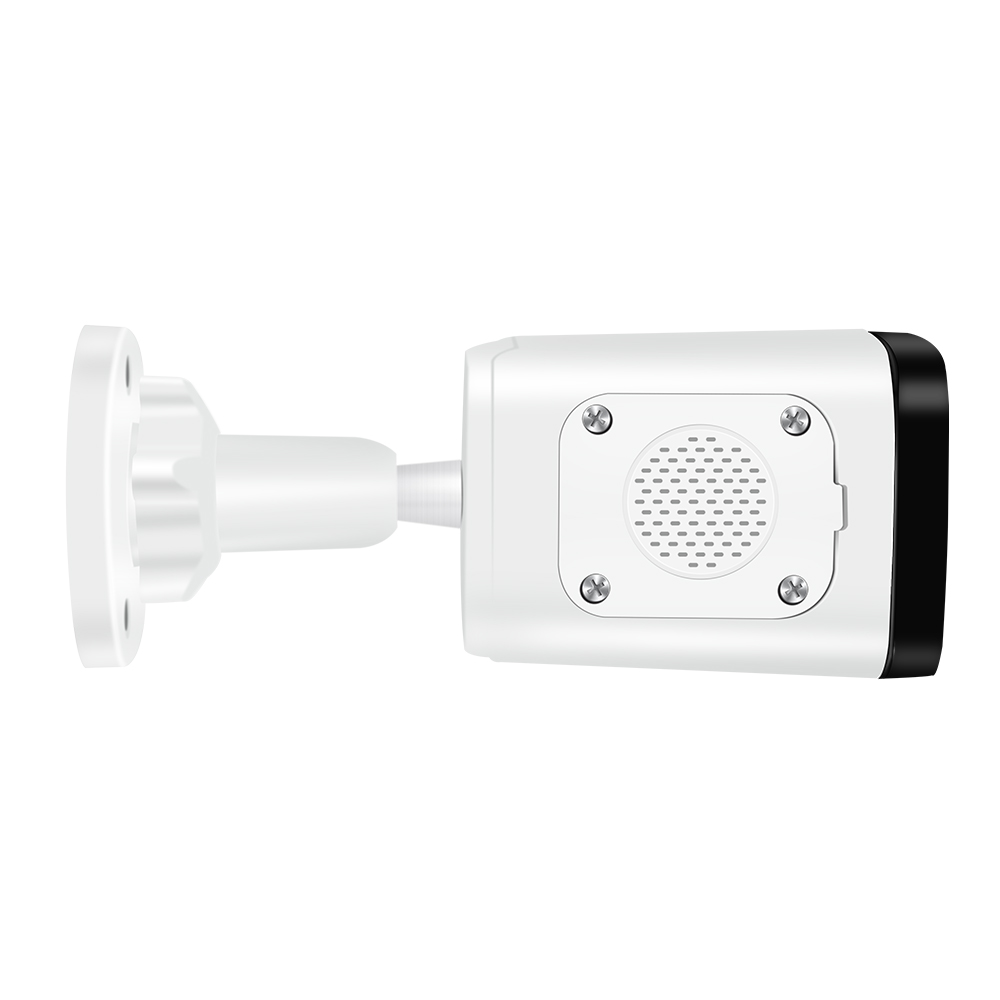

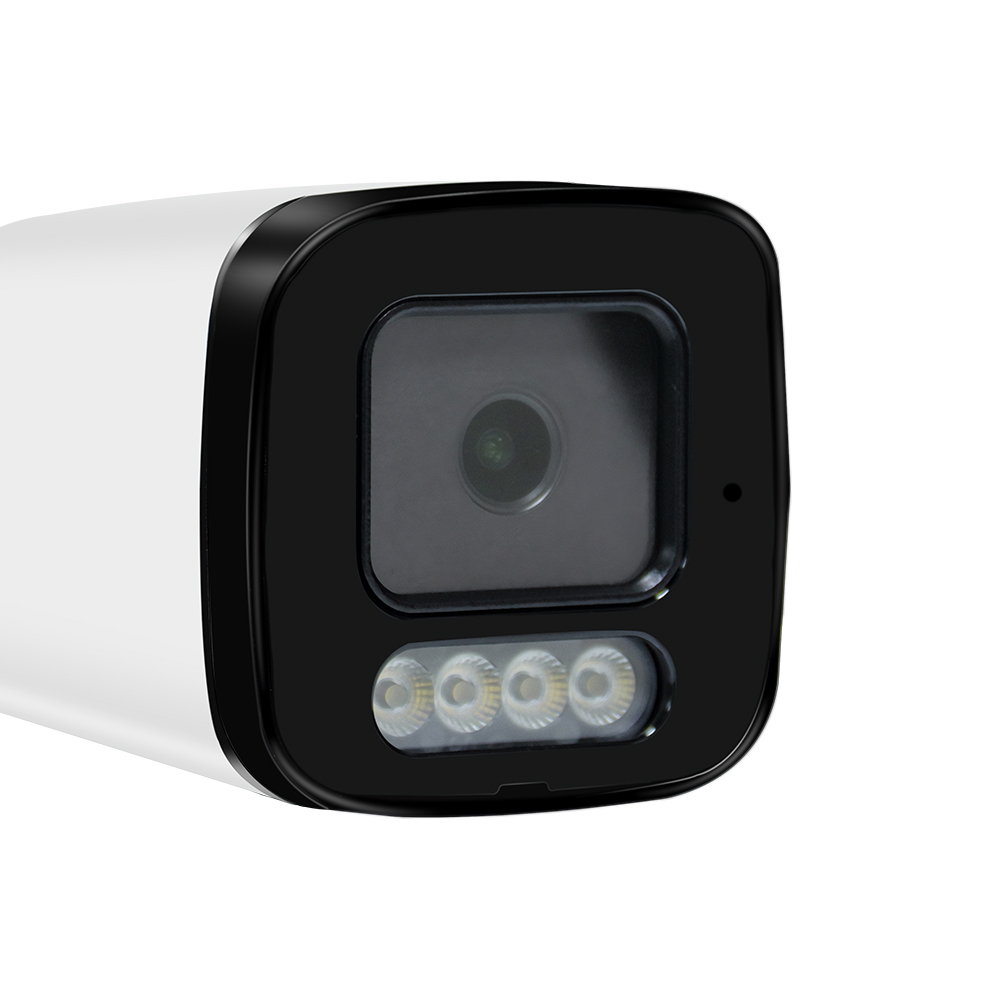

8MP Full Color Mini Bullet Network Camera

Model: iB-5089CS

  • 1/2.8" IMX415  CMOS

  • 3840 × 2160@20 fps

  • 2.8mm fixed lens

  • H.265+, H.265,  H.264

  • 24/7 vivid colorful

  • F1.0 super-aperture lens

  • WDR/HDR/3D DNR/HLC/BLC

  • Water and dust resistant(IP67)

  • Color: 0.01 lux @(F1.0),0 lux with white light

  • Built-in Microphone

  • White Light Range: up to 30 m


Experience True-to-Life Imagery with the 8MP Full Color Mini Bullet Network Camera

Elevate your security and surveillance capabilities with the 8MP Full Color Mini Bullet Network Camera, an advanced and compact solution for capturing high-quality footage in various environments. Designed for both indoor and outdoor applications, this powerful camera provides stunningly clear and vibrant images, ensuring you never miss a moment.

Features of 8MP Full Color Mini Bullet Network Camera

High-Quality:8MP Resolution The Mini Bullet Network Camera boasts an impressive 8-megapixel resolution sensor, delivering crystal-clear images with exceptional detail. Capture activities in real-time, and identify important objects or individuals with ease, even in challenging lighting conditions.

Full Color in Low Light:Equipped with advanced low-light capabilities, the camera produces full-color images, even in dimly lit environments. Its cutting-edge sensor, combined with advanced image processing technology, ensures accurate and vivid color reproduction, making it ideal for round-the-clock surveillance.

Solid, Weather-Resistant Design:Built with robust materials, the Mini Bullet Network Camera is weather-resistant and can withstand harsh outdoor conditions. Its solid casing protects it from dust, water, and other environmental challenges, providing reliable performance throughout various climates and settings.

Smart Motion Detection:Stay one step ahead with the camera's intelligent motion detection capabilities. Receive real-time alerts when movement is detected, ensuring prompt action can be taken if required. Configure custom detection zones to focus on high-priority areas and avoid false alarms.

Seamless Network Integration:Easily integrate the 8MP Full Color Mini Bullet Network Camera into your existing security setup, with support for a wide range of network protocols and compatibility with popular NVR systems. Remotely access your camera to view real-time footage, playback recordings, or adjust settings from anywhere using a user-friendly interface.

Application of 8MP Full Color Mini Bullet Network Camera

The 8MP Full Color Mini Bullet Network Camera is a versatile and powerful surveillance solution suitable for various applications, ensuring security and capturing high-quality footage in different settings. Here are some common applications:

1. Residential Security Secure your home by monitoring and recording activities in and around your property, such as entrances, driveways, backyards and garages. With clear 8MP footage, instantly identify any unusual movements or intruders.

2. Commercial and Retail Security Protect your business and monitor customer activity, theft, or employee behavior in shops, offices, hotels, banks, and other commercial establishments. The camera's high-quality footage provides valuable evidence in case of disputes or criminal events.

3. Industrial Sites Monitor working conditions, machinery operation, and employee safety at warehouses, manufacturing facilities, or construction sites. Keep track of workflow and identify potential hazards with the help of the camera's high-resolution imagery.

4. Public Safety and Traffic Monitoring Secure public spaces, including parks, transportation hubs, or streets, to deter criminal activities while ensuring public safety. Monitor traffic in real-time, capture images of vehicles or traffic violations, and analyze traffic flow patterns for improved city planning.

5. Education Institutions Safeguard educational institutions like schools, colleges, and universities by monitoring entrances, hallways, classrooms, or common areas for intruders or unusual behavior.

6. Healthcare Facilities Monitor patient areas, hallways, staff activity in hospitals, nursing homes, or clinics to ensure patient safety, prevent unauthorized access, and maintain hygiene standards.

7. Parking Lots and Garages Monitor parking lots or garages for suspicious activities, vehicle theft, or vandalism by capturing clear and detailed video footage.

8. Perimeter Surveillance Install the Mini Bullet Network Camera around the perimeter of high-security facilities, such as data centers, military bases, or research institutes, to monitor and record any potential breaches or trespassers.

These are just a few examples of how the 8MP Full Color Mini Bullet Network Camera can be applied across various industries and scenarios, providing a valuable tool for enhancing safety and security.





Camera

Image Sensor

1/2.8" IMX415 CMOS

Min. Illumination

Color: 0.01lux @(F1.0),  0 lux with white light

Shutter Speed

1/10 s to 1/10,000 s

Slow Shutter

Yes

Day & Night

Colorful Filter

Digital Noise Reduction

3D DNR 2D DNR

WDR

120dB

Angel Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length

2.8 mm

Aperture

F1.0

Focus

Fixed

FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 125°



Lens Mount

M12

Illuminator


White Light Range

Up to 30 m

Smart Supplement Light

Yes

Compression Standard




Video Compression

Main stream: H.265+/H.265/H.264

Sub-stream: H.265+/H.265/H.264

H.264 Type

High Profile/Main Profile/Base Profile

H.265 Type

High Profile/Main Profile/Base Profile

H.265+

High Profile/Main Profile/Base Profile

Smart Feature-set


Smart Event

Human detection, Vehicle detection

Basic Event

Motion detection



Linkage Method

Trigger recording:  network storage, pre-record and post-record              Trigger captured pictures uploading: FTP, Email

Trigger notification: FTP, Email


Max. Resolution

3840×2160



Main Stream

50Hz: 20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 )           60@FPS(1920×10801280×720)

60Hz: 20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 )           60@FPS(1920×10801280×720)



Sub-Stream

50Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 360,CIF)

60Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 360,CIF)


Image Enhancement

WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

SVC

H.264 and H.265 and H.265+ encoding support

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

Support local storage and NAS (NFS, SMB/CIFS)

Protocols

HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P, DHCP,SMTP,RTMP

Client

AJ_Client,,VideoLink

Interface


Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone

YES

Built-in Speaker

Power: 3W.MAX. Sound pressure lever:10cm: 100dB.

Reset Key

Yes

On-Board Storage

Built-in memory card slot, support microSD card,up to 512GB

General

Operating Conditions

-30 °C to +85 °C, humidity 95% or less (non-condensing)

Web Client Language



14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese,

Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi



Power Supply

DC 12V 1A , Φ 5.5 *2.1mm coaxial plug power PoE(802.3af) Max.7.5W

Protection Level

IP67-Each Camera has been tested waterproof

Material

Front cover:metal,body:metal,bracket:metal



Dimensions

Camera: Φ 70× 173 mm (Φ2.76" × 6.81")

Package: 195 × 100×100mm (7.68" × 3.94 × 3.94)

Weight

Camera: 380 g (0.84 lb.)

With Package Weight

Apporx.450g(0.99 lb)
