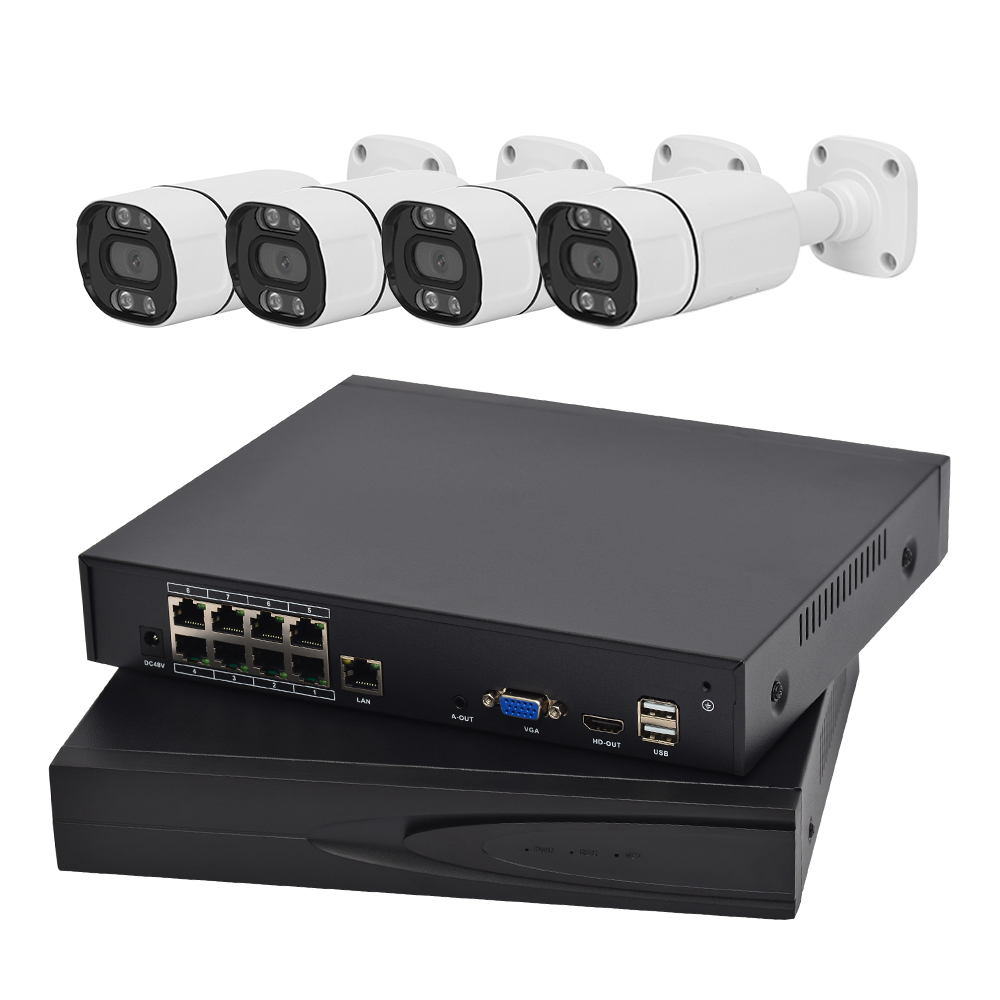

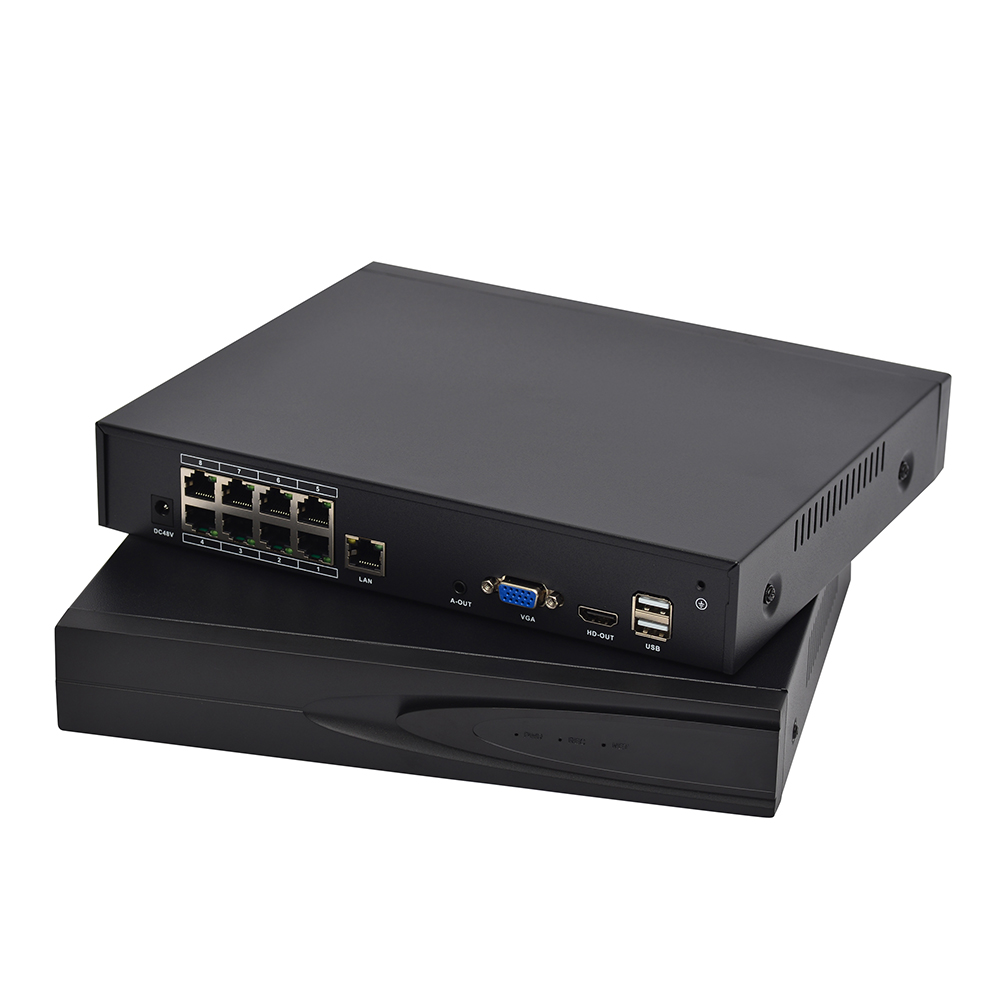

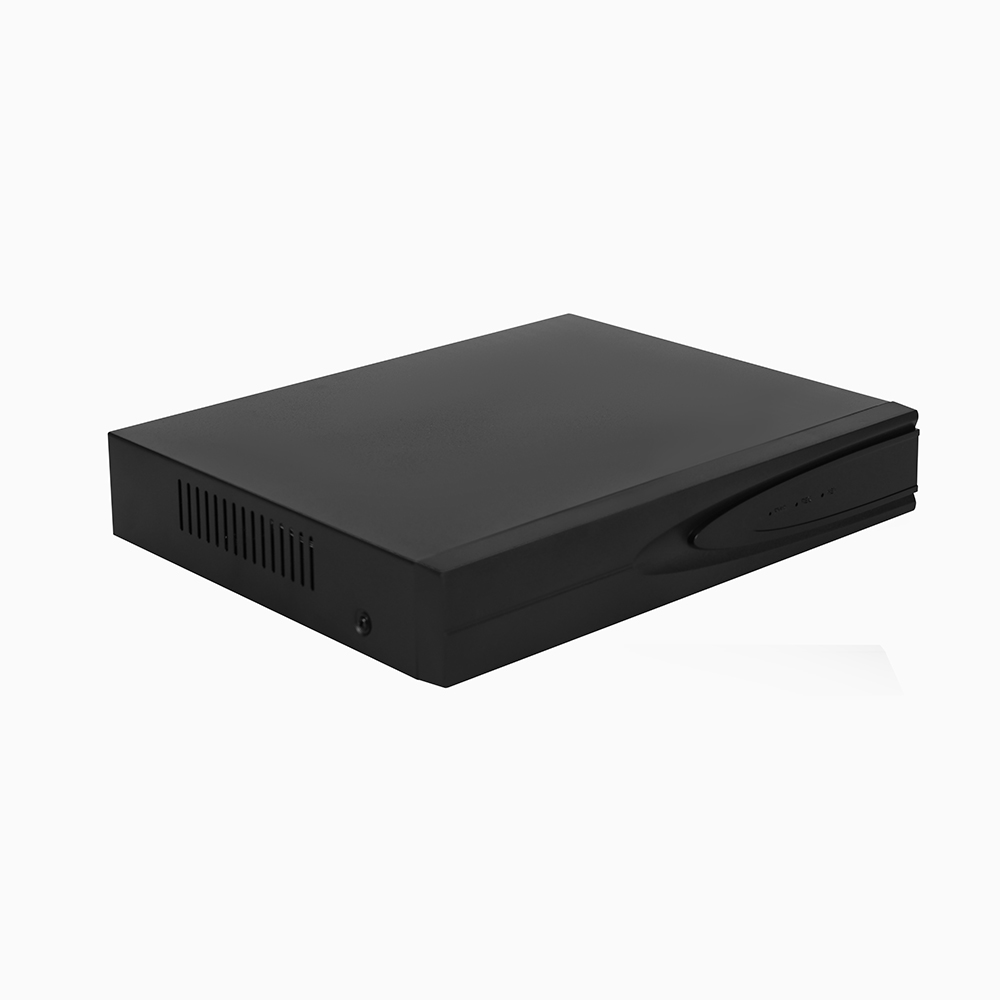

POE  NVR Specification

System structure

Embedded LINUX design, pure hardware decoding, watchdog, hard disk storage, HDMI high-definition display, IP network video access;

Video input

High-definition IPC access, support dual-stream access for each IPC, support automatic search, automatic addition, automatic recording, automatic preview, plug and play; access bandwidth 64Mbps;

Video output

1 HDMI output, 1 VGA output; resolution: 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768;

Video  Display

Support multi-picture splitting: 1/2/4/6/8/9/10/16 pictures real-time preview; Support Seetong client preview; Support phone APP preview;

Video decoding parameters

Support H.265+/H.265/H.264 decoding;

Video  Playback

NVR synchronous playback 2 channels (2*8MP); Seetong client remote video playback supports up to 2 channels;

Preview

4channels*8MP

Video resolution

Support 720P/960P/1080P/3MP/4MP/5MP/8MP;

Motion Detection

Depends on the cameras

User Management

Supports up to 38 users locally;

Video mode

Manual>Alarm>Motion Detection>Timing

Local playback

2 channels*8M/4 channels*4M/4, 8, 8 channels*1080P/8 channels*960P

Video Search

Time point search, calendar search, event search, channel search

Storage management

1 /1/2 SATA interface, each interface supports a hard disk with a maximum capacity of 14TB;

Support timing recording, motion detection linkage recording, alarm linkage recording, cross-border recording, area intrusion recording, intelligent face recording, intelligent license plate recording, intelligent humanoid recording, intelligent vehicle recording

Network backup, USB mobile hard disk, USB burning, SATA burning

Video output

1 VGA, 1 HDMI

Loop through output

none

Audio input

1

Audio output

1

Network Interface

4 POE network ports + 1 RJ45 WAN port

USB interface

2 USB ports

Hard disk interface

1 SATA interface (each supports up to 14T)

power supply

POE 52V

Power consumption

Less than 3W (without hard disk)

Operating temperature

0℃—+55℃

Working humidity

10%—90%

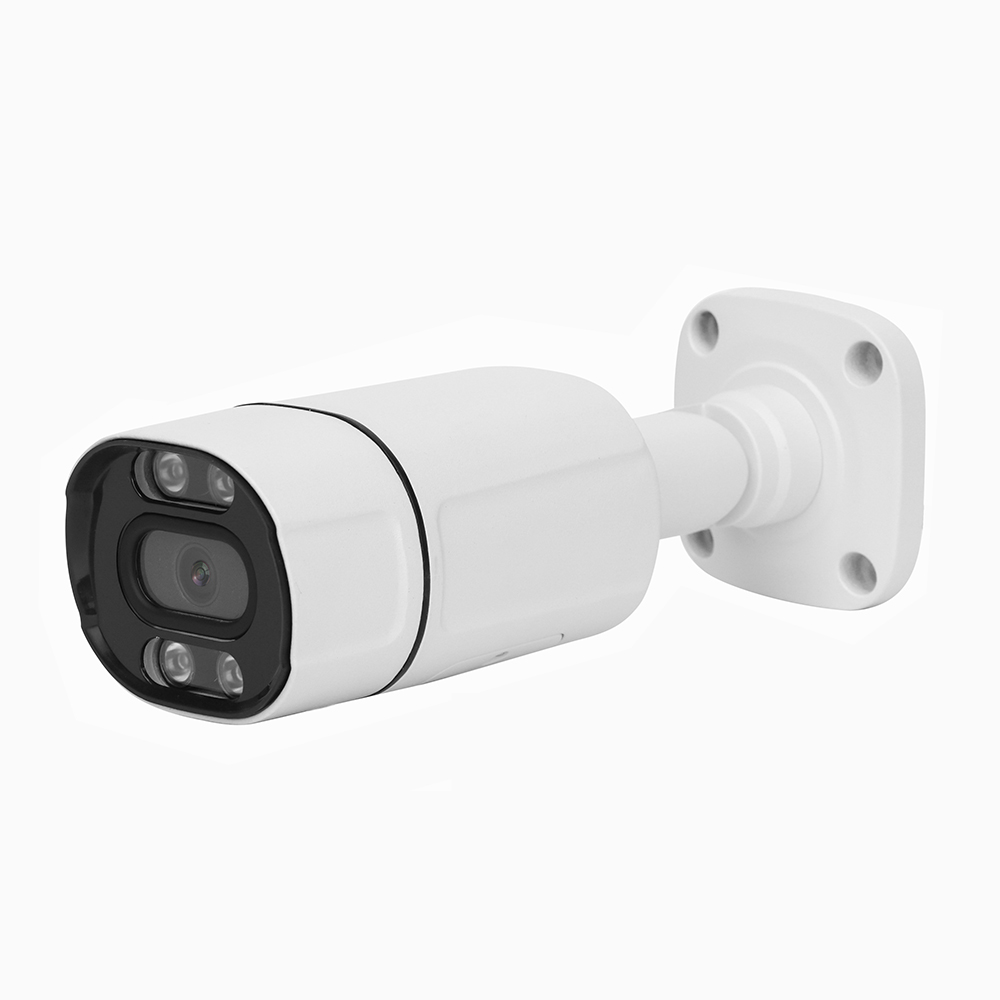

POE Camera Specitication

IMAGE SENSOR

1/2.8" NOVA+ST401AI/NOVA+ST501AI/NOVA+Sony415

Video compression

H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M bps adjustable, support PAL and NTSC

MIN. ILLUMINATION

0.01Lux@F1.2(AGC ON), 0Lux IR on

Frame Rates

4MP:2592*1520@20fps/5MP:2592*1944@ 25fps/8MP:3840* 2160@20fps

VIDEO FRAME RATE

Main stream:2880×1620,2592×1520,2560×1440,2048×1520,2304×1296,1920×1080;

Audio Interface

1channel input,support mic or pickup input;1channel output, support headset or amplifier play

Audio code

G.711 CODEC standard, support dual voice talkback, audio and video synchronization

Network Interface

1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity;support RTSP/DHCP/NTP,GB/T28181,compatible ONVIF and so on network protocols

IR LED

Nano-tech IR LED: 28µ x 4pcs, IR Range: 30M

FOCAL LENGTH

2.8/3.6mm

APERTURE

F1.4

TF

support  (512G)

Network interface

Built in RJ45network interface support 10M/100M IP DATA

Smart Alarm

humanoid and vehicle detection/motion detection/ video loss/network cable disconnection/IP address conflict

Power Consumption




MAX 5W

Interface protocol

ONVIF Hikvision XM jovision personal protocol

Network protocol

TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP,  NTP, UPNP

INGRESS PROTECTION

IP67

P2P

Anfroid IOS

POWER SUPPLY

DC12V±10% OR POE

WORKING ENVIRONMENT

-10°C~+50°C / Less than 95%RH (no condensation).

Box size(mm)/weight

4 33*19.5*27.5CM/PCS 4.6KG

Carton size(mm)/weight

40.8*34.2*57.8CM/4PCS 18.4KG
