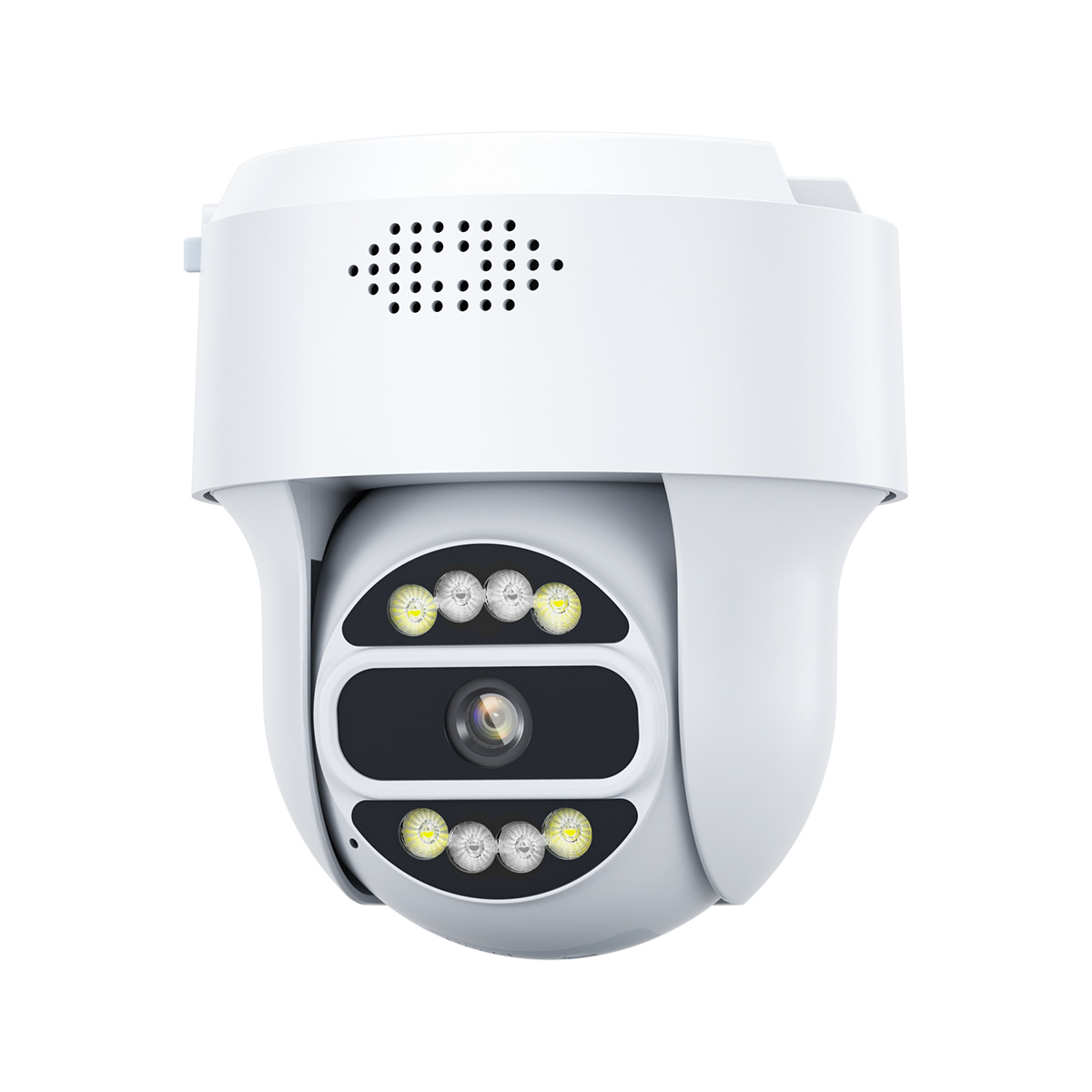

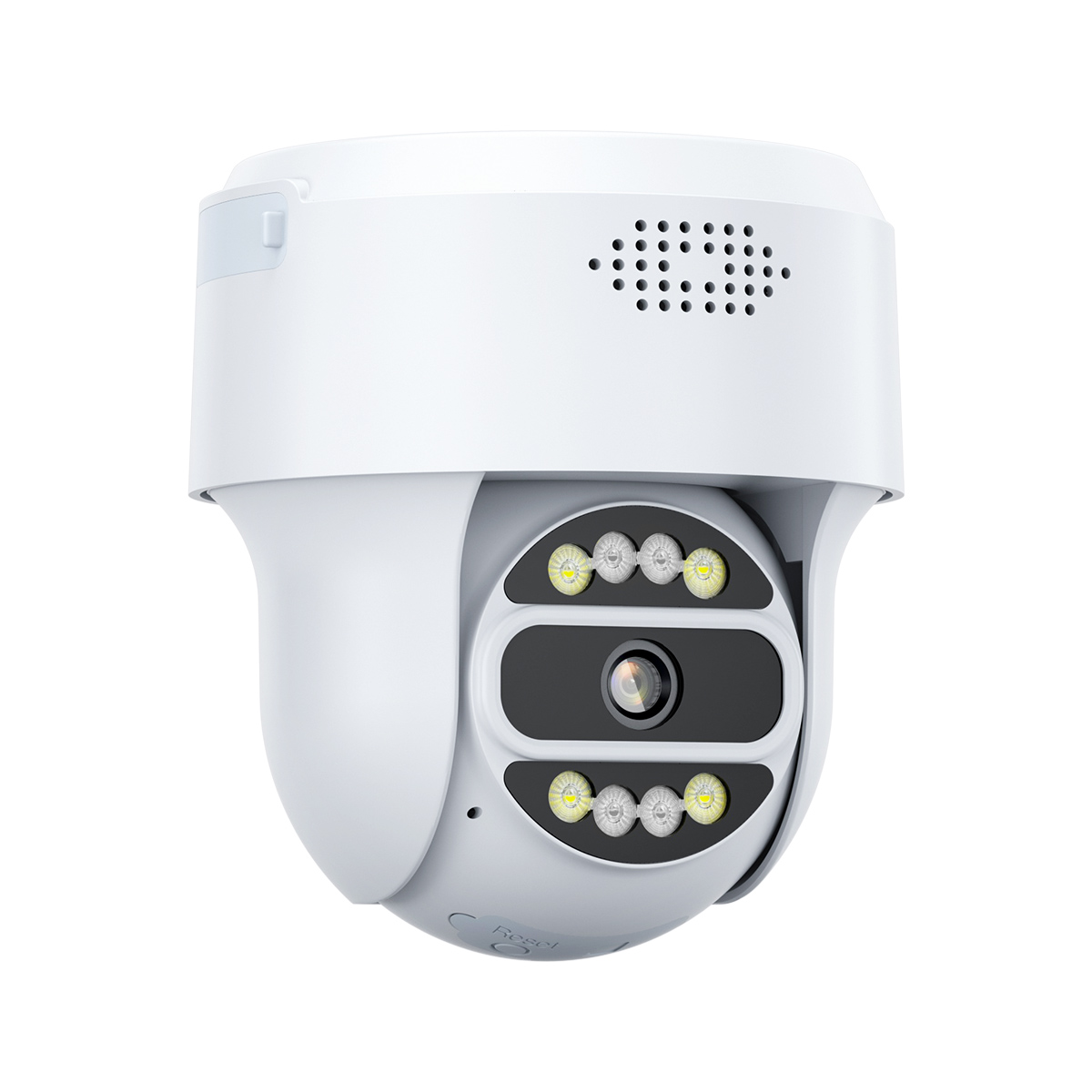

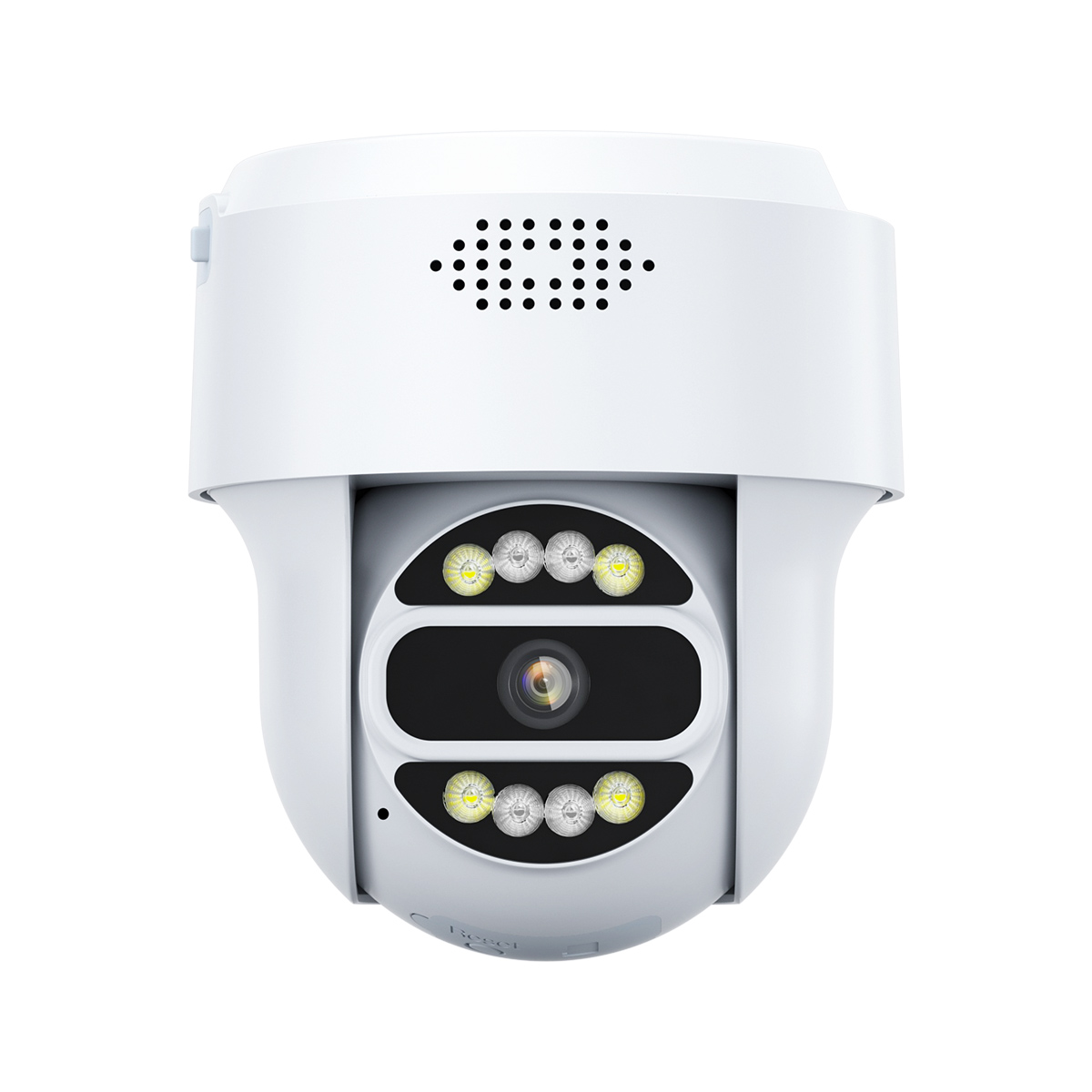

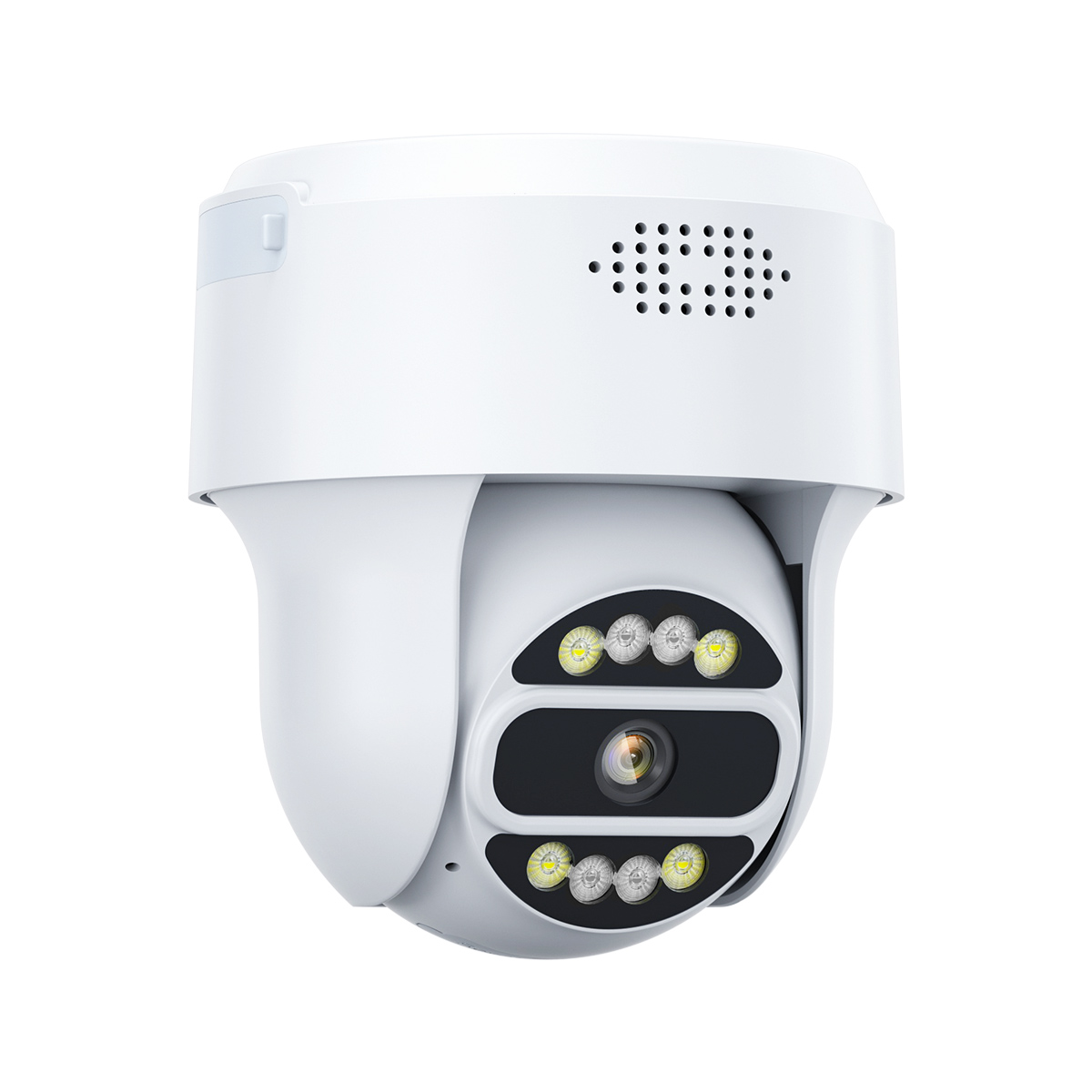

5MP Wi-Fi PoE PT Dome Camera
Model:iB-PT2536FPW-IRCS (5MP )
Main feature:
lMaterial: ABS Plastic , IP65 waterproof ;
lH.265 compression, 5 megapixel (2560x1920) ;
lCamera with 8pcs lights, 4pcs IR lights+4pcs white lights ;
lSupport 5Ghz & 2.4Ghz wifi ; Support PoE;
lSupport for factory dynamic domain name and third-party dynamic domain name resolution;
lIR-CUT auto switch in day and night, 3.6mm megapixel lens ;
lSupport 3D DNR, digital WDR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image;
lMovement Range:Pan:350°,Tilt:90°;
lIR Light Range: up to 15 m,White Light Range: up to 10m
lSupport ONVIF protocol;
lSupport FTP server;
lSupport IE ,Google, Firefox browser ;
lFunctions: WIFI / Audio / TF Card slot (Max 128GB) ;
lSupport playback and download videos;
lSize : 110mm×110mmx130mm ;
Model: | iB-PT2536FPW-IRCS (5MP ) | |
Camera | Imaging sensor | 1/2.7" SC5238 CMOS |
Chip | T31X | |
Signal system | PAL / NTSC adjustable | |
Scanning Mode | Progressive scanning | |
Illumination | IR ON 0 lux | |
Lens | 3.6mm megapixel lens | |
Electronic shutter | 1/25s~1/10000s; automatic | |
Day and night switch | IR-CUT dual optical filters auto switch in day and night | |
SNR | ≥50dB(AGC OFF) | |
Privacy masking | Support | |
IR source | 4pcs IR lights + 4pcs white lights | |
Standard compression | Image compression | H.265 |
Video bit rate | 32Kbps~6Mbps | |
Audio compression | G.711 | |
Image | Max image size | 2560x1920 (5MP) |
Frame rate | 1-25 fps | |
Image adjustment | Can adjust Saturation, brightness, contrast, sharpness | |
Image mirroring | Horizontal mirroring, vertical mirroring | |
Scene | Auto | |
Function | Storage | Support TF card storage (max 128GB) |
Audio | Microphone, speaker | |
WIFI | Support WIFI function (5Ghz&2.4Ghz Supported) | |
Alarm | Support sent pictures to email or FTP | |
Protocol | ONVIF 2.4 | |
Network protocol | TCP/IP、UDP/IP、HTTP、ICMP、FTP、EMAIL、TELNET … … | |
Mobile App | Support IPhone、Android | |
Basic parameter | Power input | DC12V/PoE |
Work environment | -30℃ ~ 60℃, humidity is less than 80% (no condensation) | |
Waterproof | IP65 |
