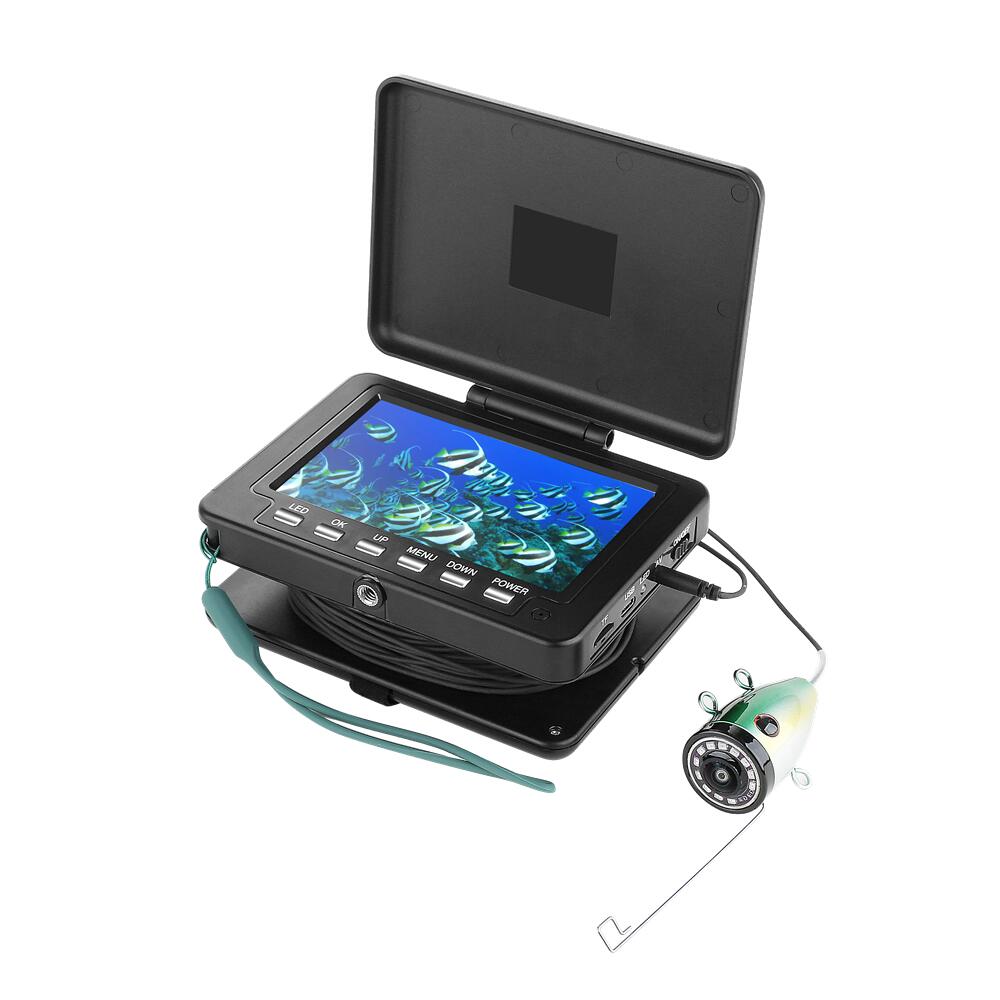

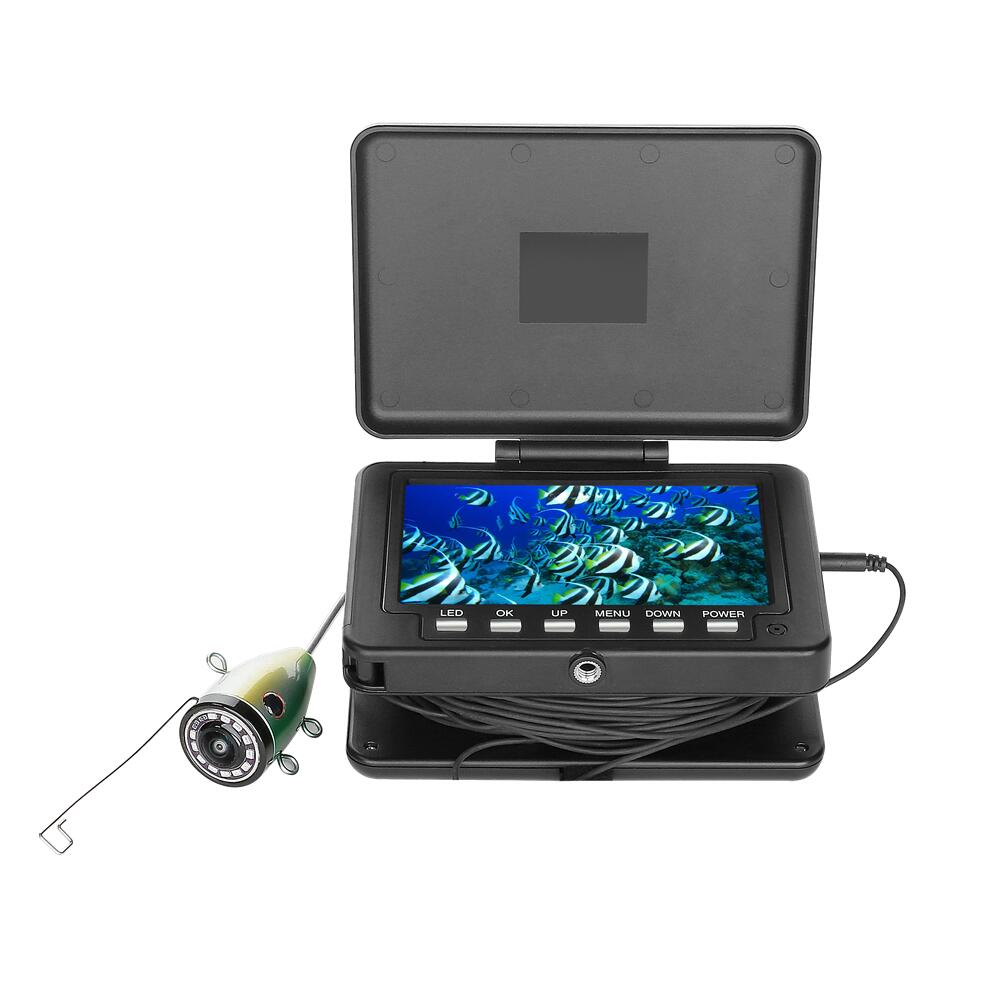

720P 5 inch DVR Fish Finder Underwater Fishing Camera

Model:F520ADC30-15M

Product introduce

This product you are watching now is the latest popular, fashional, good looking and convenient Underwater Video Camera System. It not only has a large and color screen, but also has a height definition camera which has AHD 1080P. 12pcs infrared lamps,also can adjust the LED brightness to obtain more better quality image.this underwater monitor system also has the DVR function. Besides, this item comes with 16GB TF card and this system maximally support 64GB TF card.

Application field:

Monitoring aquaculture, underwater exploration, Ocean/Ice/Lake fishing swimming/diving/snorkeling are all available.

Features:

1.5 inch IPS LCD color  DVR function monitor with sun-visor for bright environment outside

2.   Clear images displaying with AHD 1080P 2 Million piexl fishing camera.

3.  Waterproof,Aluminum alloy 180 Degrees fish model design

4.   Cold-resistant, waterproof and pull-resistant cables

5.   The available camera extension cable length: 15m

6.   12pcs infrared lamps, high-intensity.

7.   The continuous using time of the battery is up to 8 hours,Battery status.

8.   also can adjust the LED brightness to obtain more better quality image

Display

Display Size: 5 inch IPS

Display Resolution: 1280*720

Monitor Input Voltage: 12V DC

Video recording resolution :1280*720

TF card :Max support 64GB TF card .(factory standard  16GB )

Menu English /русский

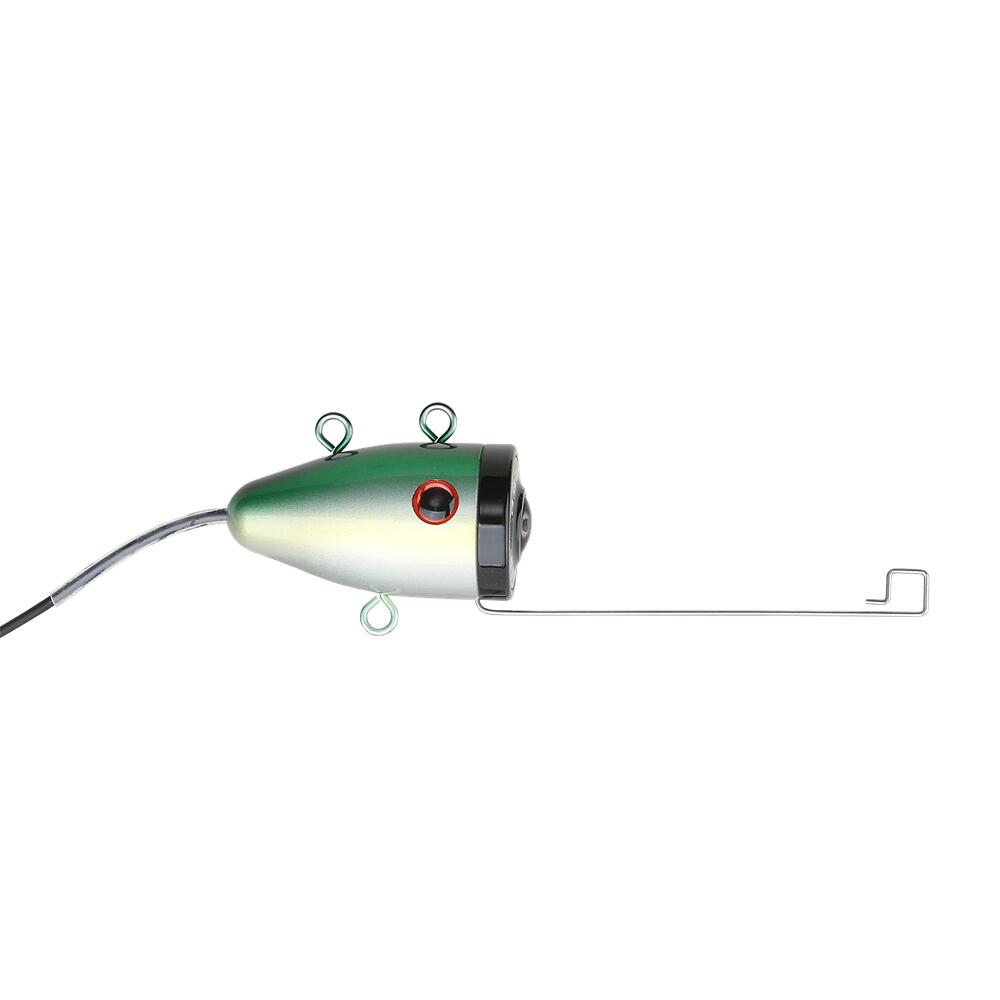

Camera:

The camera can horizontal and vertical install

Image Sensor: AHD CMOS Sensor

IP68 Waterproof

Viewing Angle: 180 Degrees

Visible distance ( clear water ): 1-3m

Night Vision: 12pcs infrared lamps.

Camera: 1080P/Aluminum alloy

Camera Size:Diameter 30*55mm

Battery: 5000MAH

Power Box:Battery status

The continued using time of the battery: about 8 hours

Box Size:(270*155*90mm)

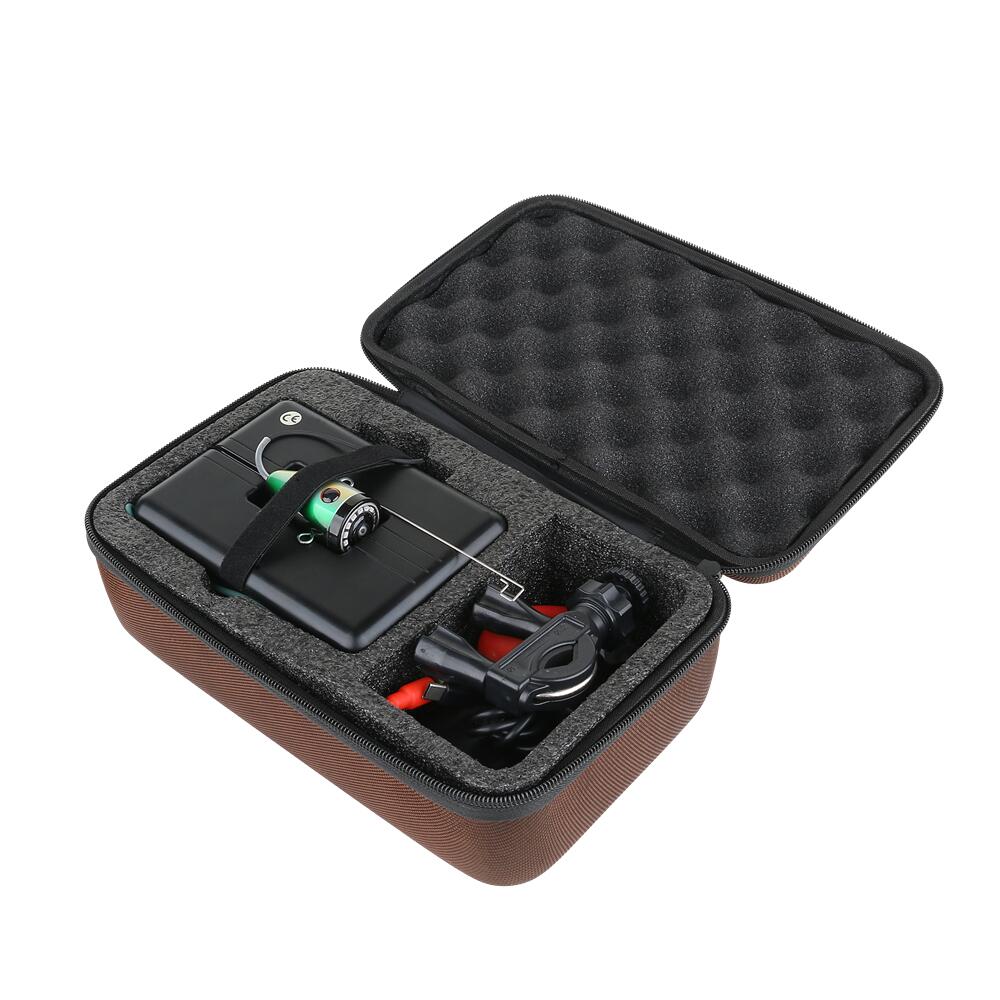

Package Contents:

1 x USB Cable+ Charger

1 x Camera Lens with 15m Cable

1 x 5 inch Display

1 x 16GB TF Card

1 x Float

1 Fishing rod bracket

Bag

1 x Fishing rod accessories bag

Note: Telescopic fishing rod does not include
