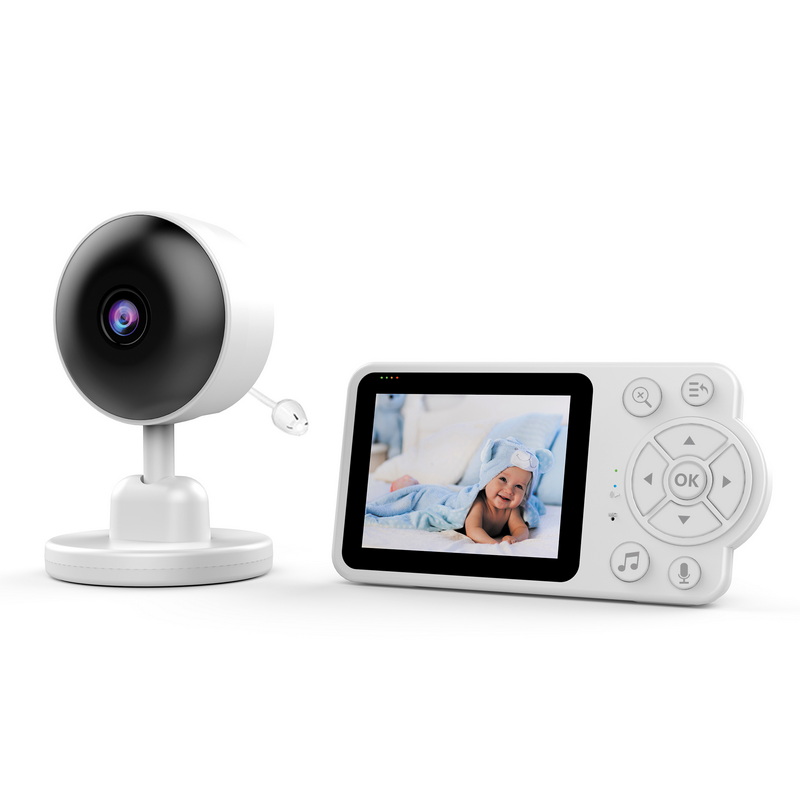

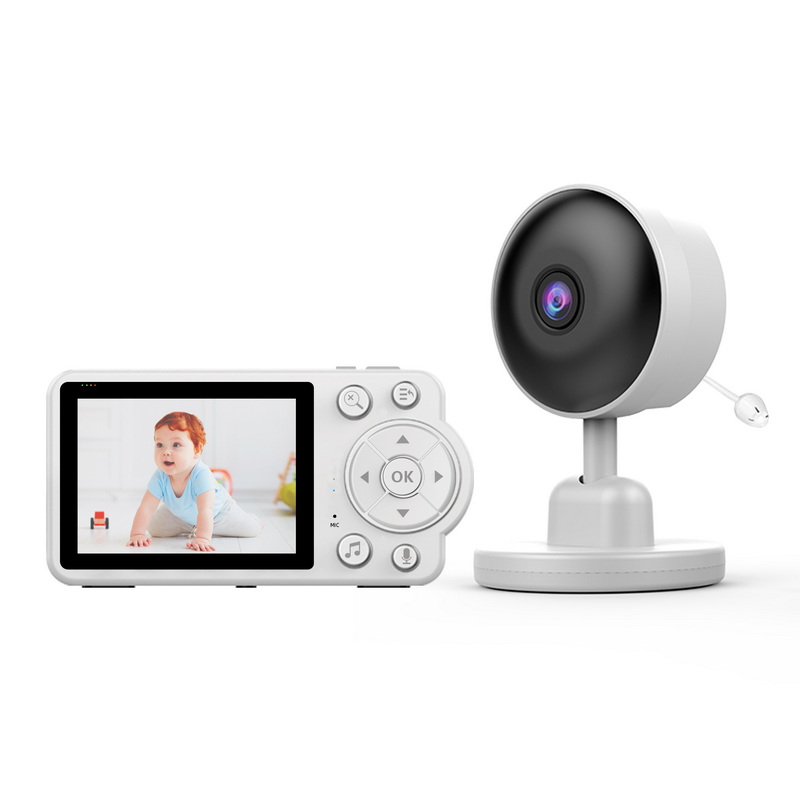

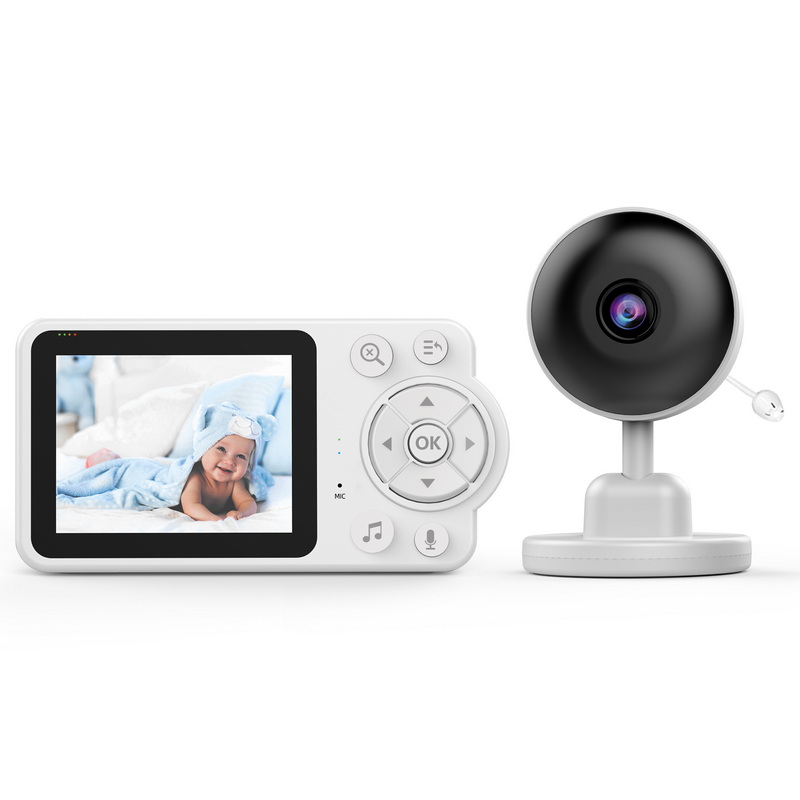

2.4G 2.8 inch 720P Video Baby Monitor

Model:iB-C3

Product review

1.The use of intelligent baby caretaker is more targeted at infants, more targeted and caring, and realizes more functions to help parents better take care of their children.

2. The product can remotely view real-time videos of babies.

3. The caretaker adopts a 100W high-definition camera, which can clearly observe the child's every move (the display screen supports a maximum of 1280 * 720P display)

4. The host uses a 2.8 inch TFT high-definition display screen with a screen resolution of 240 * 320.

5. High definition infrared night vision, night vision supports an effective distance of 0-5 meters, allowing for clear visibility of the baby's every move at night.

6. The host adopts DSP video recognition, and when the ambient light is below 0.2LUX, it starts the matte night vision mode.

7. The baby's movement detection/crying detection will be notified to the LCD terminal.

8. Feeding alarm reminder: It can be set according to the baby's habits in the machine settings menu "Feeding alarm"

9. Temperature detection: You can observe whether the baby's room temperature is comfortable on the LCD terminal.

10. Cradle function: You can select music from the machine settings menu "Music", and the host function buttons can play music

11. Machine power supply method:

  • Camera Type-C 5V2A power supply

  • Built in 2000mAH polymer battery for charging through Type-C interface;

  • The LCD comes with a power switch, which is convenient for cutting off the local power supply of the entire machine and monitoring its condition

12. The machine adopts an energy-saving design. The indoor unit defaults to a 10 second automatic screen shutdown and enters standby mode. The machine screen remains on for a long time and will not enter standby mode. It is not environmentally friendly and consumes electricity. The standby time is approximately 90 days, and it can be used for about 30 days (please refer to the energy-saving reminder card for details).

13. Machine intelligence adaptation system, to meet the needs of different scenes, you can set the brightness yourself.

14. The machine is easy to use.

  • Install the camera on a flat surface according to the instructions or use the included mounting bracket to fix the camera on the wall surface.

  • Power the camera machine (connected to Type-C port)

  • Connecting the camera to the display screen, one click connection is very simple and fast



Function Introduction

  • 2.8 inch baby monitor+remote monitoring+IPC camera

  • Duplex intercom, crying detection, temperature detection, motion detection, video amplification function

  • Cradle playback, volume adjustment function, feeding reminder function

  • 2.8 inch TFT high-definition screen, screen brightness adjustment, screen power saving function, language selection, foldable bracket, antenna, pan tilt control

  • 30W high-definition camera, manually rotating the pan and tilt 360 ° left and right/80 ° up and down, no red light night vision

  • Remote video viewing, playing lullabies, and voice intercoms

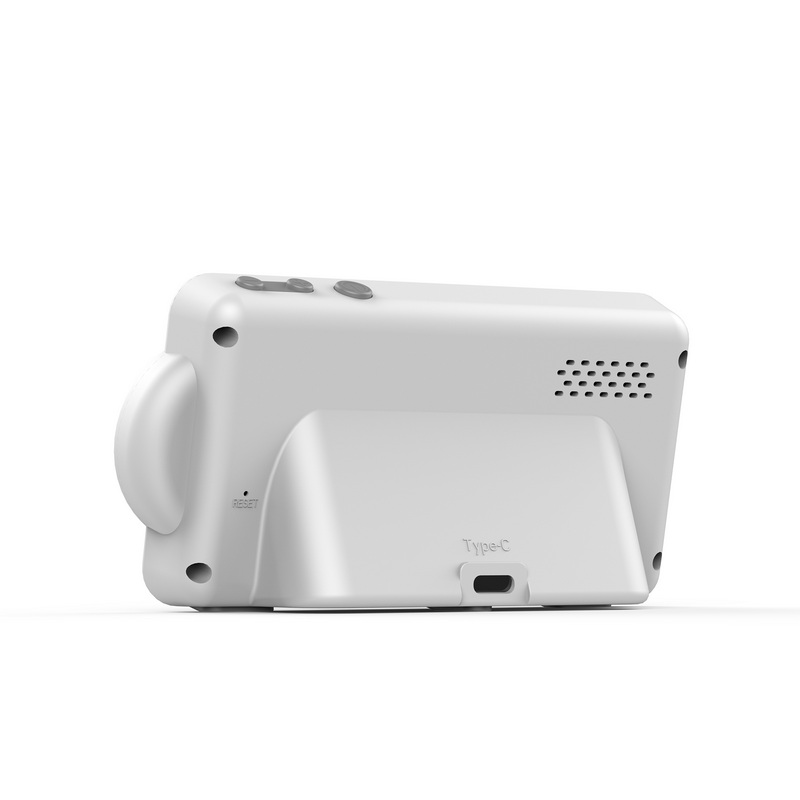

  • The screen is equipped with a 2000mah lithium battery and a TYPE-C power supply/charging interface

Camera Introduction

  • 1280*720 pixel CMOS sensor;

  • M7 full glass high-definition lens;

  • Support multiple video formats, with a maximum support of 640 * 480P (25fps);

  • Equipped with wide dynamic and low illumination functions, supporting automatic color to black conversion;

  • Using 32-bit processors and professional video encoding and decoding chips;

  • Infrared night vision IR-CUT anti magnetic and no red exposure technology with a night vision distance of 0-5 meters;

Host Introduction

  • Built in RTOS operating system, comprehensive list menu configuration and management;

  • Support local monitoring, reminders, and function settings;

  • Feeding alarm clock is set for a duration according to the baby's needs

  • The detection alarm can be set in two modes: "crying detection/motion detection";

  • Temperature detection function;

  • Equipped with a 2.8 inch TFT high-definition LCD display screen;

  • Various built-in lullabies are available for selection;

mode



parameters

C3

·

2.8 ich baby caretaker (Single mode 2.4G)

·



IPC

parameters

Master chip

AX3292

Basic frequency

144M主频  8M内存

Internal storage

8M

Imaging sensor

VGA:GC0308

Effective pixels

1280*720P

Minimum illumination

0.5Lux/F2.0彩色)

0.02Lux/F2.0(黑白)

White balance

·

Automatically track white balance

·



Microphone

·

Anti-jamming sensitivity-30db±3db

Distance

5m

Loudspeaker

8欧1瓦

Electronic shutter

1/4-1/10,000s

Night visual range

5m

·

Photosensitive mode

·



photosensitive diode

LED   infrared lamp

· 940nm(No red exposure

Transmission mode

2.4G

Wireless module

2.4G中科芯  24R01  with PA

2.4g transmission distance

·

Image transmission up to 300 meters in open space with little interference

·



·

Night vision mode

·



·

Photosensitive automatic light detection, automatic night vision mode,

·



Focal distance

3.7mm

Horizontal view angle

92degree

F-number

F2.15

Infrared night vision

8颗,Angle 90 degrees940No red light

Material

ABS engineering plastic

Video resolution

1280*720

Frame rate

10fps

Video compression

H.265

Current

shut down:100ua starting up:150ma pair:250ma

Operating temperature

 -30℃-65℃

Host color

white

current source

DC-5V lithium battery  18650 3.7V  capacity:2000ma

Power supply port

TYpe-C  口

IPC function

Mobile detection

SESOR sensing dynamic push alarm to the LCD end

Alarm sensitivity

Low / medium / height

Cry detection

support

Mobile detection

SESOR sensing dynamic push alarm to the LCD terminal

 Formatting

Support for the formatting of the TF cards

Status indicator light

support

Infrared night vision function

Automatic, shut down, and turn on

Sound regulation of equipment

support

Alarm function timing

              support

Alarm interval

1 Minute 3 Minutes 5 Minutes

lullaby

Support on, off, loop play

 Temperature

support

Intercoms

support

LCD parametes

 Main chip

建荣AX3292

Dominant frequency

144M dominant frequency  8Minternal storage

Internal storage

8M

Microphone

-38db±3db

screen resolution

320*240

loudspeaker

8欧1瓦

Pickup distance

5m

transmission mode

2.4G

Wireless module

2.4G中科芯  24R01  with PA

2.4gtransmission distance

Image transmission reaches 300 meters

Body material

ABS engineering plastic

LCD Screen type

2.8寸TFT

LCD Screen resolution

320*240

current

Shut down100ua turn on135mamake a pair150ma

operating temperature

 -30℃-65℃

Host color

white

Charging port

TYpe-C  口

Battery capacity

lithium battery 18650 3.7V capacity 2000ma

Battery life

300 cycles over 80%

LCD Fuction

Temperature detection alarm

support

Cry detection alarm

support

Mobile detection alarm

support

Cradle play

support

Intercom 

support for semi-duplex intercom

Language setting

support

Menu button

Up and down, left and right, ok key; music play key; intercom key; power-on key; amplification key

·

Electron amplification

·



4times

Feed the alarm clock

Customize the time and set the time

Display settings

Dormancy and screen brightness

Time date

Date time , zone setting

Restore factory setting

support

Version information

Support view

Accessory

Screw bag

Couplug * 2 screw * 2 reset pin * 1

USB cable

Length: 1.5 m. 1 root

Wound bracket

(apolegamy)

Instructions

1
