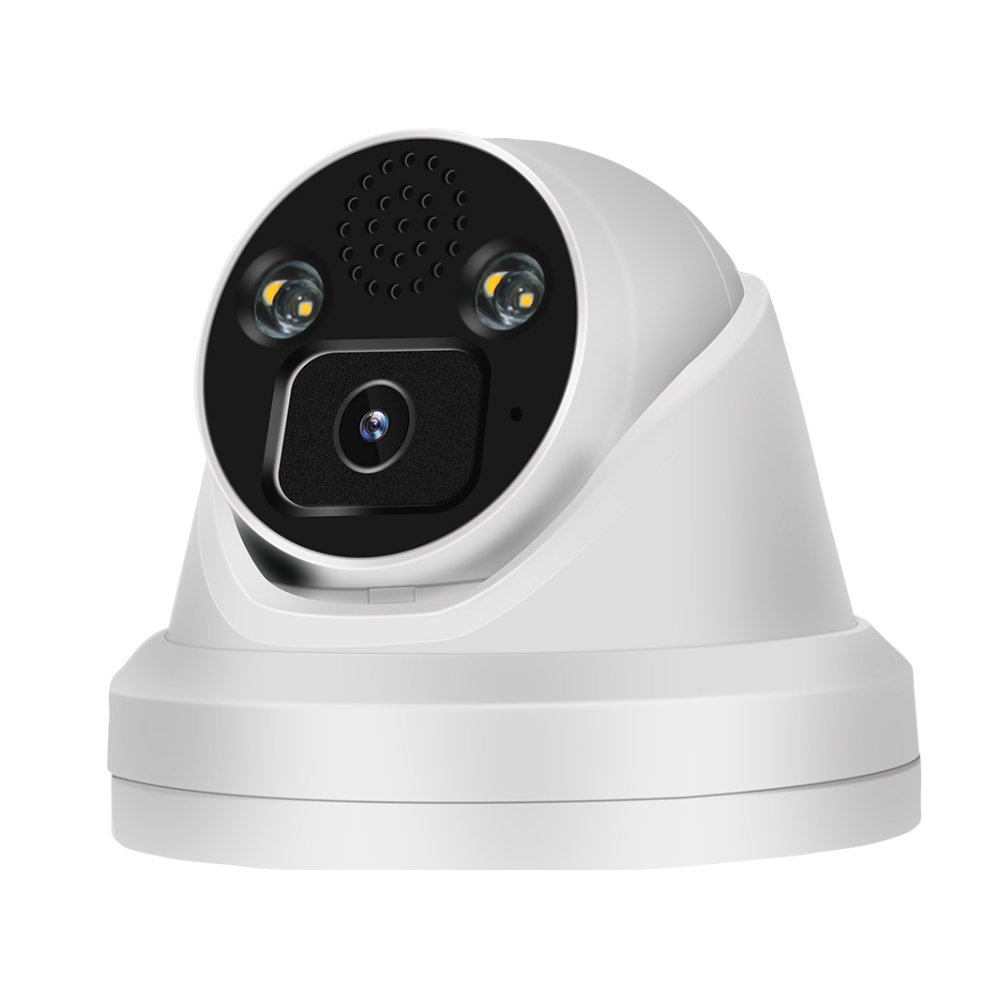

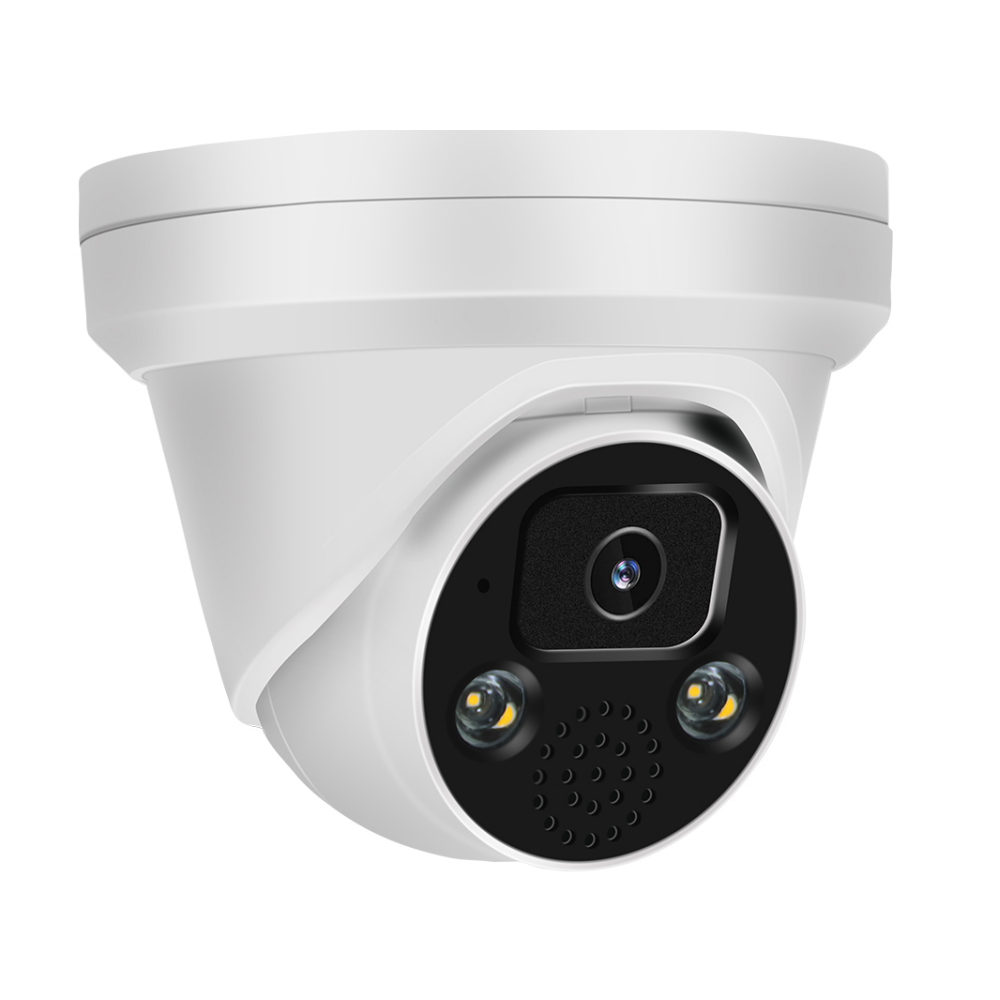

8MP Full Color Turret Network Camera iB-5387CS

Model: iB-5387CS

  • 1/2.8" IMX415  CMOS

  • 3840 × 2160@20 fps

  • 2.8mm fixed lens

  • H.265+, H.265,  H.264

  • 24/7 vivid colorful

  • F1.0 super-aperture lens

  • Built-in Microphone&Speaker

  • White Light Range: up to 30 m

  • WDR/HDR/3D DNR/HLC/BLC

  • Water and dust resistant(IP67)

  • Color: 0.01 lux @(F1.0), 0 lux with white light

  • 3-Axis adjustment


Camera

Image Sensor

1/2.8" IMX415 CMOS

Min. Illumination

Color: 0.01lux @(F1.0),  0 lux with white light

Shutter Speed

1/10 s to 1/10,000 s

Slow Shutter

Yes

Day & Night

Colorful Filter

Digital Noise Reduction

3D DNR 2D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focal Length

2.8 mm

Aperture

F1.0

Focus

Fixed

FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 125°



Lens Mount

M12

Illuminator


White Light Range

Up to 30 m

Smart Supplement Light

Yes

Compression Standard




Video Compression

Main stream: H.265+/H.265/H.264

Sub-stream: H.265+/H.265/H.264

H.264 Type

High Profile/Main Profile/Base Profile

H.265 Type

High Profile/Main Profile/Base Profile

H.265+

High Profile/Main Profile/Base Profile

Smart Feature-set


Smart Event

Human detection, Vehicle detection

Basic Event

Motion detection



Linkage Method

Trigger recording:  network storage, pre-record and post-record              Trigger captured pictures uploading: FTP, Email

Trigger notification: FTP, Email


Max. Resolution

3840×2160



Main Stream

50Hz: 20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 )           60@FPS(1920×10801280×720)

60Hz: 20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 )           60@FPS(1920×10801280×720)



Sub-Stream

50Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 360,CIF)

60Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 360,CIF)

Image Enhancement

WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

SVC

H.264 and H.265 and H.265+ encoding support

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

Support local storage and NAS (NFS, SMB/CIFS)

Protocols

HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P, DHCP,SMTP,RTMP

Client

AJ_Client,AC18Pro,VideoLink

Interface


Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone

YES

Built-in Speaker

Power: 3W.MAX. Sound pressure lever:10cm: 105dB.

Reset Key

NO

On-Board Storage

Built-in memory card slot, support microSD card,up to 512GB

General

Operating Conditions

-30 °C to +85 °C, humidity 95% or less (non-condensing)

Web Client Language



14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese,

Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi



Power Supply

DC 12V 1A , Φ 5.5 *2.1mm coaxial plug power PoE(802.3af) Max.12W

Protection Level

IP67-Each Camera has been tested waterproof

Material

Front cover:metal,body:metal,bracket:metal,ring:plastic



Dimensions

Camera: Φ 126 × 98 mm (Φ4.96" × 3. 86")

Package: 127 × 127 × 124 mm (5" ×5" × 4.88")

Weight

Camera: 605 g (1.32 lb.)

Available Model

iB-5387CS(2.8mm)
