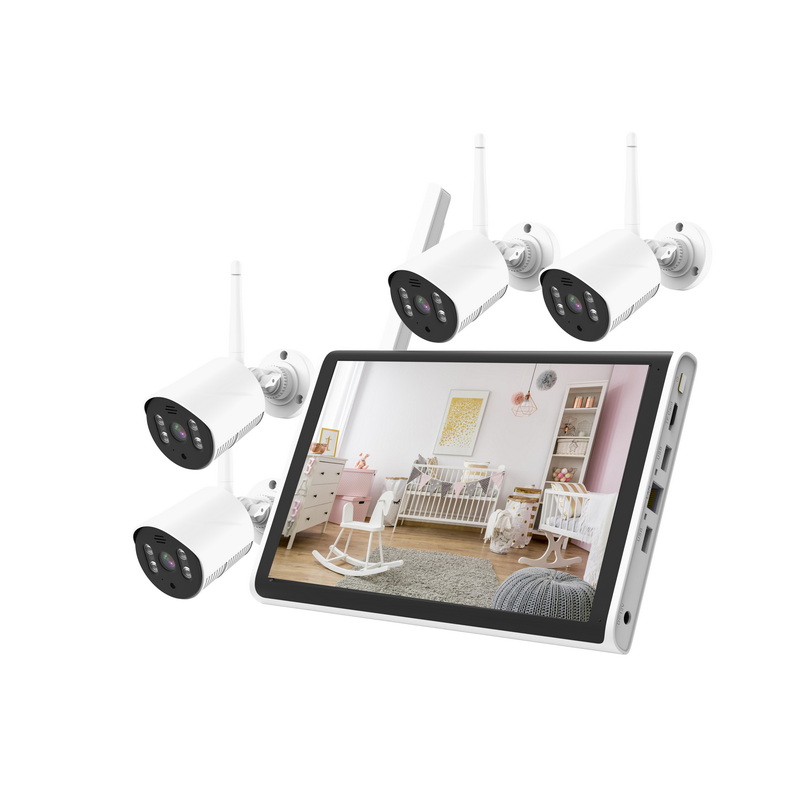

10.1 inch LCD 2MP WIFI NVR KiT iB-6026HEC-XMW4-10PD

Model:iB-6026HEC-XMW4-10PD

  • 10.1 inch LCD 8CH 3MP WIFI NVR (not HDD)   X 1

  • WiFi  1080P IP Cameras   X 4

  • DC 12V 1A Power adapter   X4

  • DC 12V 2A Power adapter   X1

  • USB Mouse   X 1

  • User Manual   X1

  • Screw bag   X4

Model:
 iB-6026HEC-XMW4-10PD

10.1 inch LCD 8CH 3MP WIFI NVR (not HDD)   X 1
WiFi  1080P IP Cameras   X 4
DC 12V 1A Power adapter   X4
DC 12V 2A Power adapter   X1
USB Mouse   X 1
User Manual   X1
Screw bag   X4

Box size(mm)/weight

1pcs :   390*274*125mm ;  2.76KG

Carton size(mm)/weight

4pcs/box : 510*410*300mm12KG

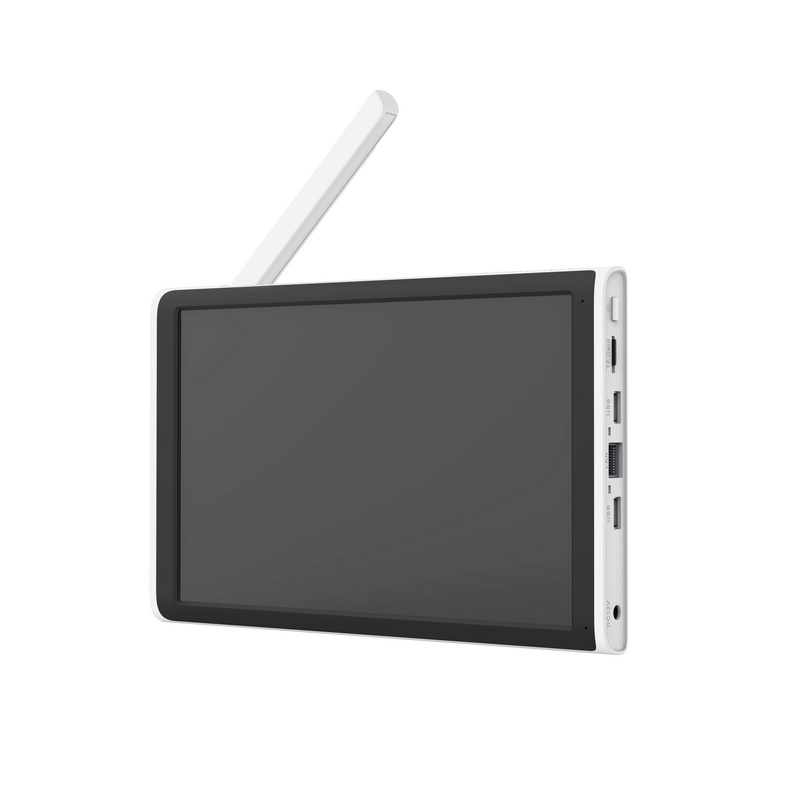

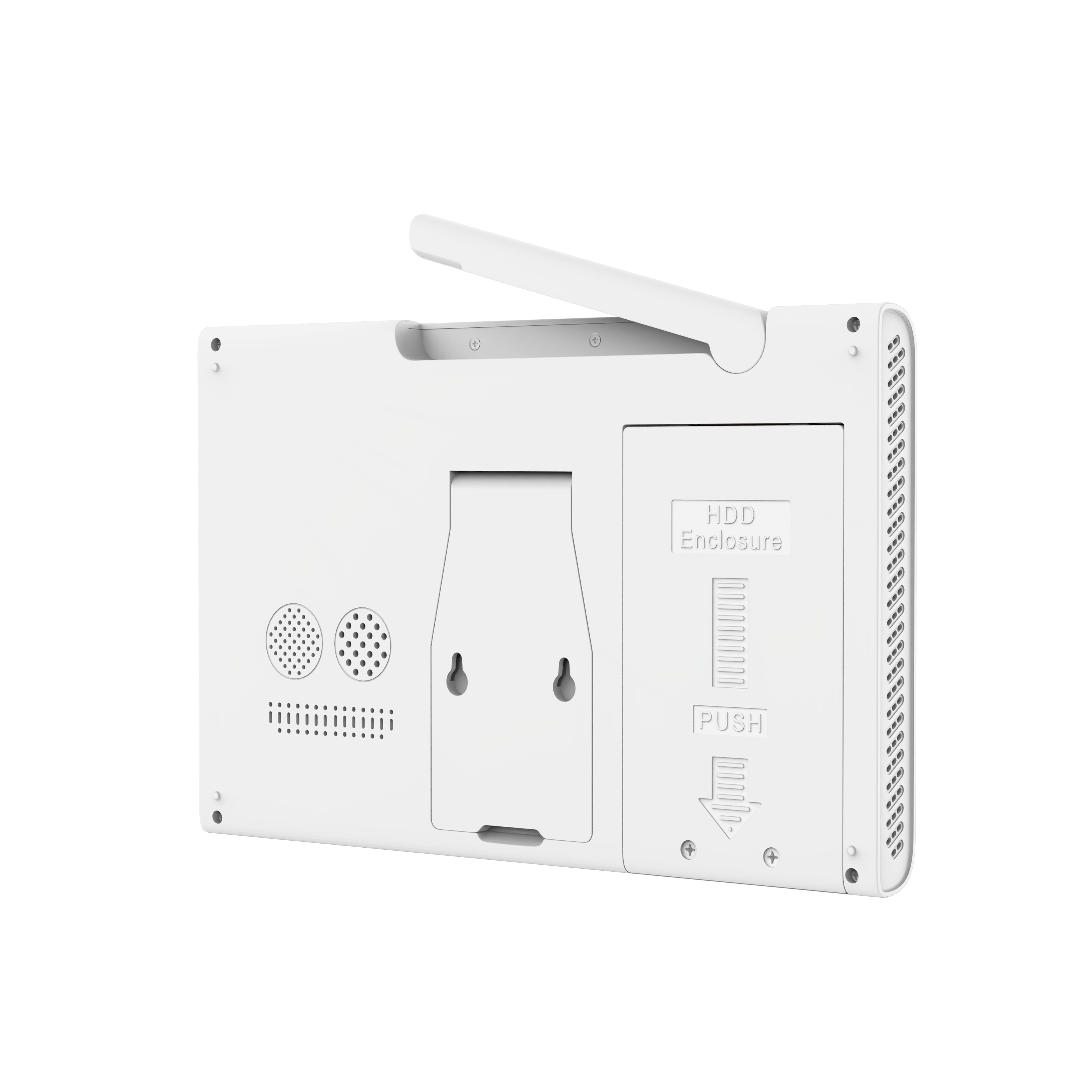

WiFi NVR Specification

System

Main processor

XM8516D

screen

10.1 inch  1280*800

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/8/9

Video input (IP)

8*3MP

Access bandwidth

24Mbps

Forwarding bandwidth

24Mbps

Video compression

H.265+

Display quality

Max 3MP

Playback quality

3MP

Decode

8*3MP

Face recognition

Support(depend on camera)

Human shape detection

Support(depend on camera)

Audio

Audio compression

G.711A

Microphone

support (camera)

Speaker

support (NVR)

Record & playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

8*3MP

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDDNetwork,SD card

Backup mode

Network backup, USB hard disk, USB burner,

External
Interface

Network interface

1*RJ45 10M/100M Adaptive Ethernet port+8ch WIFI

USB interface

2*USB2.0 ports

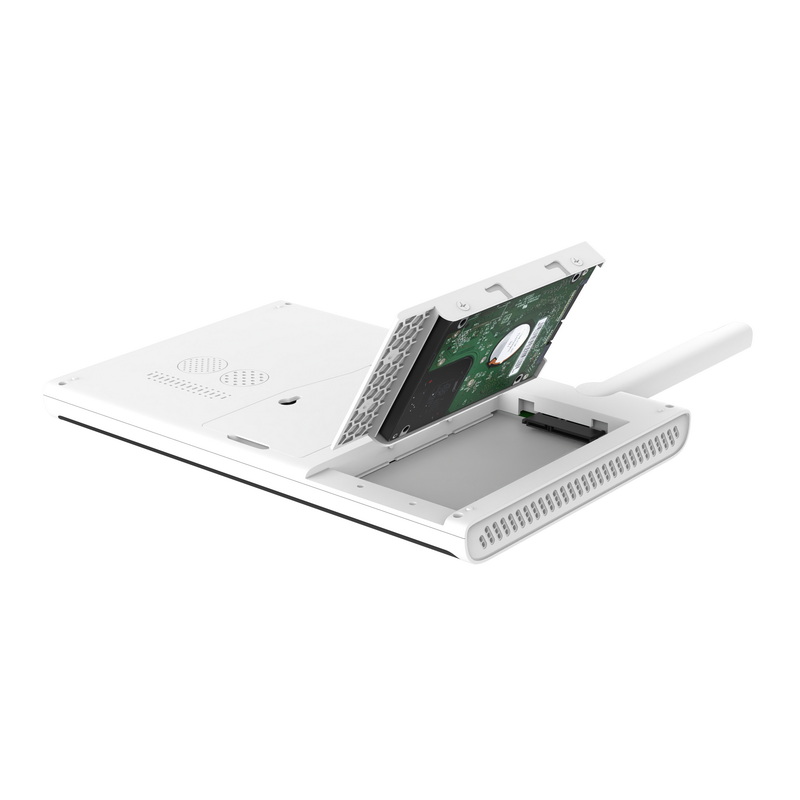

HDD

1* SATA+1 SD card

Other

ONVIF

support (NVR)

fan

support (NVR)

temperature

-10-60

humidity

10%-90% RH

Power supply

DC 12V/2A

Power Consumption

<10W(Without HDD)

Dimension

252*162*22 mm;

Weight

0.7 kg

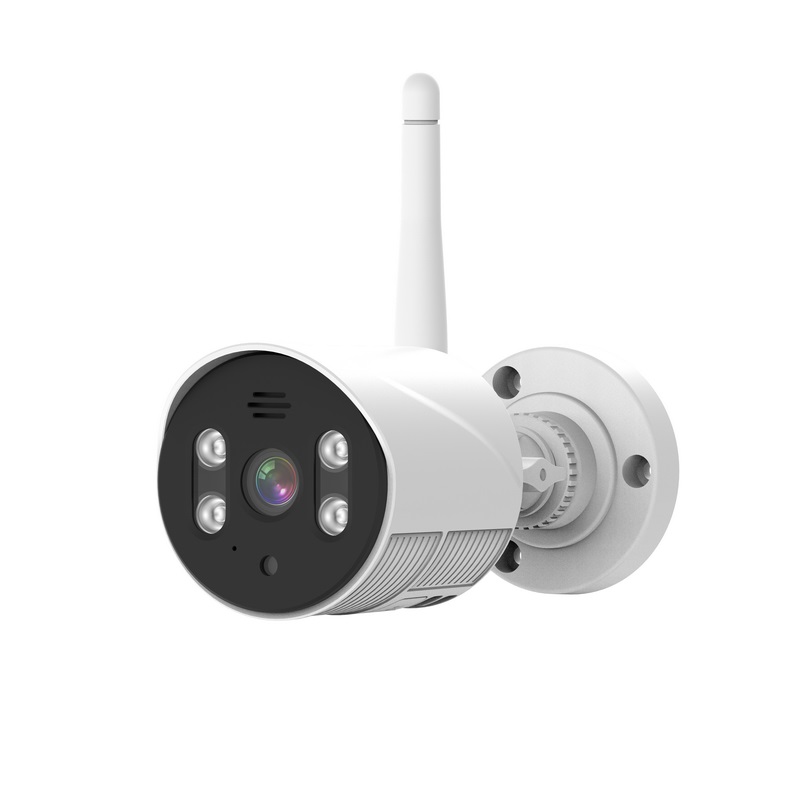

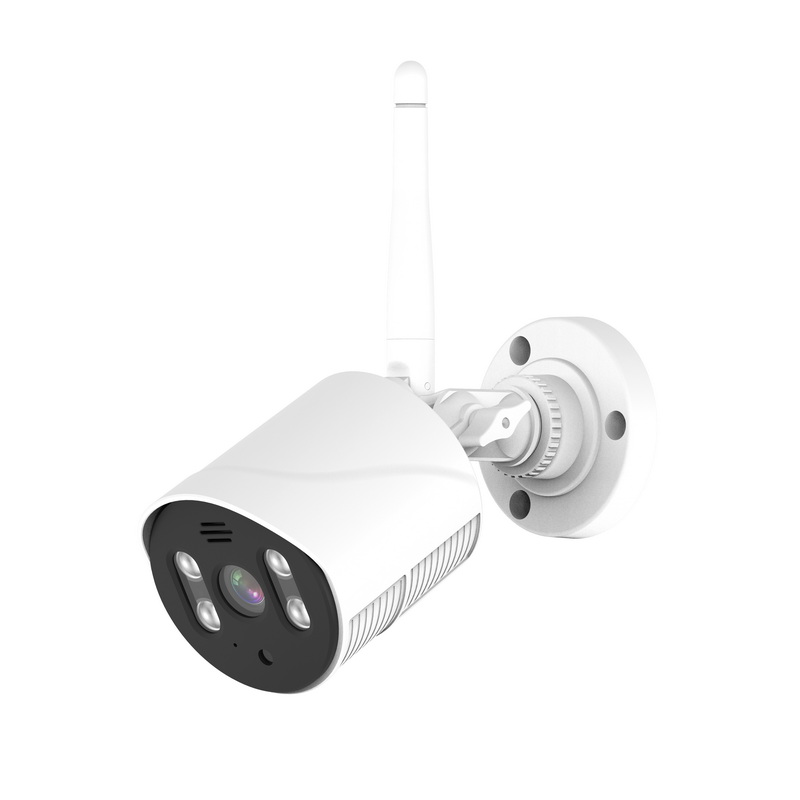

WiFi Camera Specification

To configure

Processor + sensor

XM530V200 Ai + 1/3" CMOS sensor

Low illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Effective pixel

HD 1080P

Lens

3.6MM

Infrared Leds

4pcs IR + 4pcs White light

Infrared distance

15~20m

Day&night

IR cut filter with auto switch

General

setting

Saturation, brightness and contrast ;
 are adjustable through IE browser or client software.

Video compression

H.265+

temperature

-10-60

humidity

10%-90% RH

Power supply

DC12V 1A

Consumption

MAX 6W

Waterproof grade

IP66

Dimension

148*65*65mm;

Weight

0.19 kg
