Box size(mm)/weight

1pcs/CTN:  315*175*270mm ;  2.7KG

Carton size(mm)/weight

6pcs/CTN:  565*340*560mm ;  17KG

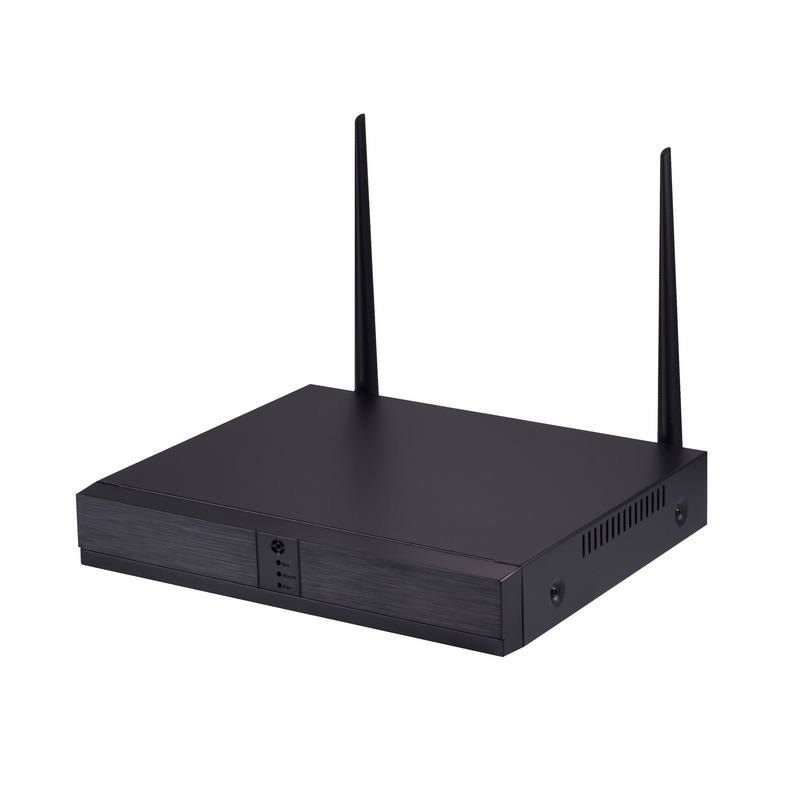

WiFi NVR Specification

System

Main processor

XM580

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/8/9

Video input (IP)

8*1080P

Access bandwidth

24Mbps

Forwarding bandwidth

24Mbps

Video compression

H.265+

Display quality

Max 2MP

Playback quality

2MP

Decode

8*2MP

Face Detection

Support(depend on camera)

Human  Detection

Support(depend on camera)

Audio

Audio compression

G.711A

Record & playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

8*2MP

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDD,Network

Backup mode

Network backup, USB hard disk

External
Interface

Video output

1ch VGA,1ch HDMI  output

Audio I/O

0/1

Network interface

1*RJ45 10M/100M Adaptive Ethernet port+8ch WIFI

USB interface

2*USB2.0 ports

HDD

1* SATA(Up to 4TB for each disk)

Other

ONVIF

YES

Power supply

12V/2A

Power Consumption

<10W(Without HDD)

Working Environment

Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp

Dimension

254mm*215mm*42mm

Weight

1.05KG

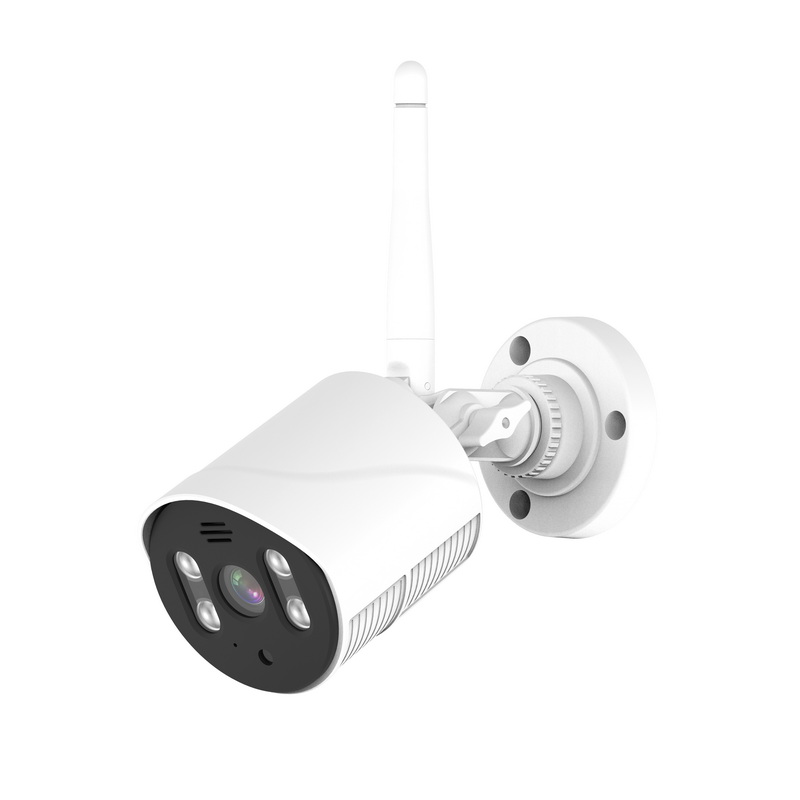

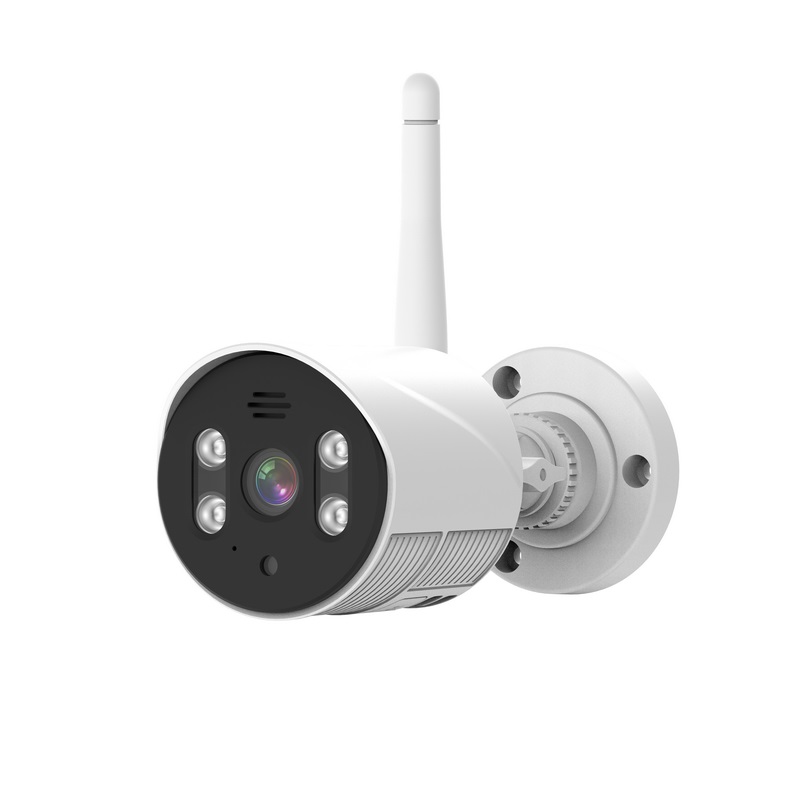

To configure

Processor

XM530V200

Low illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Effective pixel

HD 1080P

Lens

3.6MM

Infrared Leds

4pcs

Infrared distance

15~25m

Day&night

IR cut filter with auto switch

General

setting

Saturation, brightness and contrast ;
 are adjustable through IE browser or client software.

Video compression

H.265+

temperature

-10℃-＋60℃

humidity

10%-90% RH

Power supply

DC12V 1A

Consumption

MAX 6W

Waterproof grade

IP66

Weight

0.35 kg
