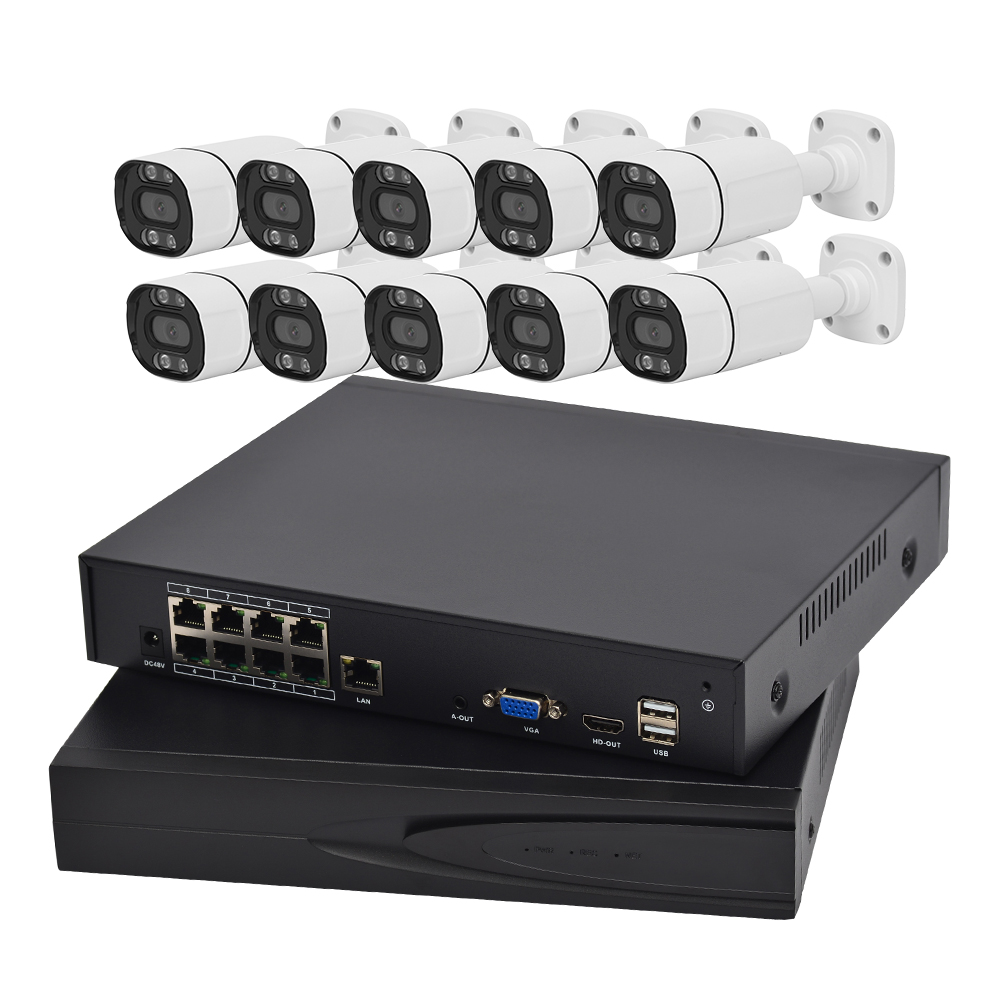

H.265 8CH 5MP PoE NVR Kit iB-6026HEC-XMW-Z8
Model:iB-6026HEC-XMW-Z8
8CH 1080P WIFI NVR (No HDD) X 1

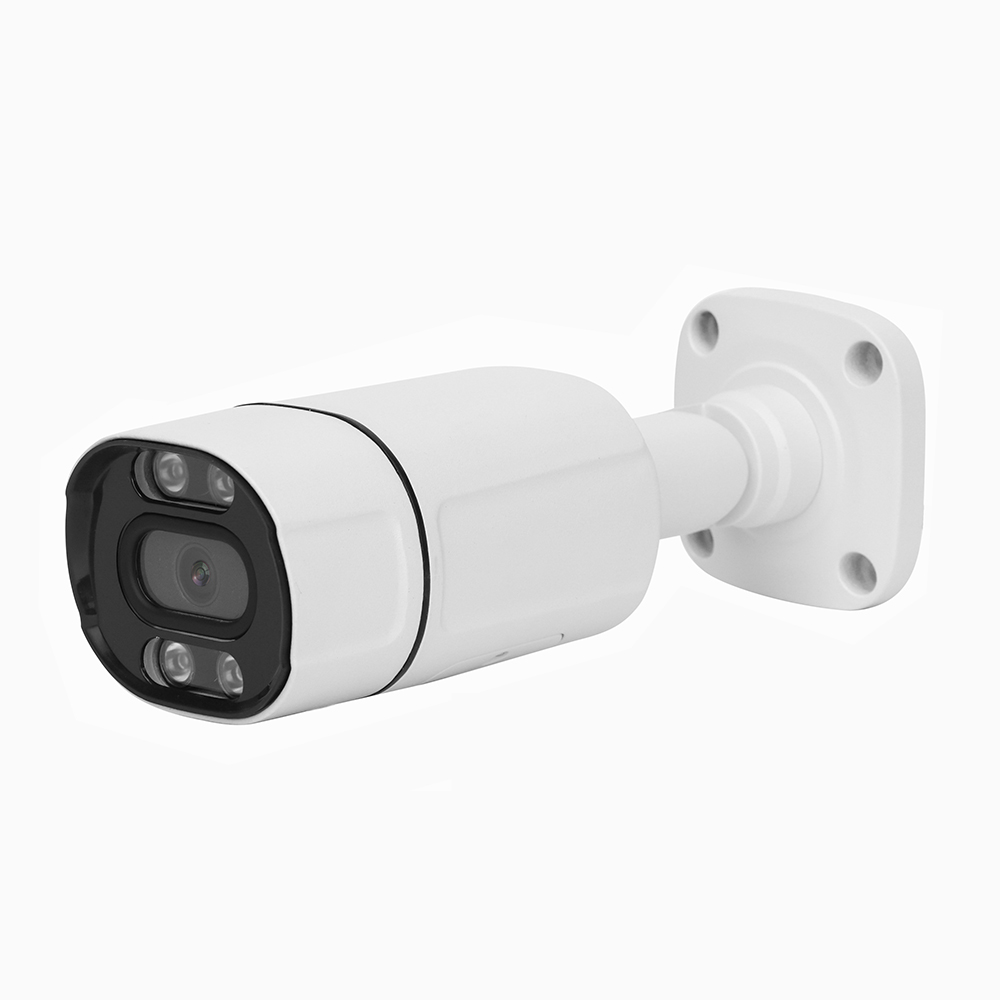

WiFi 1080P IP Cameras X 8
DC 12V 1A Power adapter X8
DC 12V 2A Power adapter X1
USB Mouse X 1
User Manual X1
Screw bag X8
Model: iB-6026HEC-XMW-Z8 |
| |
Box size(mm)/weight | 1pcs/CTN: 315*275*270mm ; 4.3KG | |
Carton size(mm)/weight | 4pcs/CTN: 565*340*560mm ; 18KG | |
WiFi NVR Specification | ||
System | Main processor | XM580 |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/4/8/9 | |
Video input (IP) | 8*1080P | |
Access bandwidth | 24Mbps | |
Forwarding bandwidth | 24Mbps | |
Video compression | H.265+ | |
Display quality | Max 2MP | |
Playback quality | 2MP | |
Decode | 8*2MP | |
Face Detection | Support(depend on camera) | |
Human Detection | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 8*2MP | |
Search mode | Search by Time/Calendar/Event/Channel | |
Record storage | HDD,Network | |
Backup mode | Network backup, USB hard disk | |
External | Video output | 1ch VGA,1ch HDMI output |
Audio I/O | 0/1 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+8ch WIFI | |
USB interface | 2*USB2.0 ports | |
HDD | 1* SATA(Up to 4TB for each disk) | |
Other | ONVIF | YES |
Power supply | 12V/2A | |
Power Consumption | <10W(Without HDD) | |
Working Environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 254mm*215mm*42mm | |
Weight | 1.05KG | |
